校园智能体温监测系统 - 精准、实时、安全的学生健康守护方案

组件与物料清单

软件与云服务

• Arduino IDE
• Visual Studio Code + Pymakr 扩展
• ThingSpeak API
• IFTTT
• PuTTY / IDLE IDE

问题背景

亚洲炎热气候及 2003 年 SARS 经验，要求中小学生定期测温。传统方式学生自带体温计，易遗失、损坏、忘带，卫生禁止共用，购买负担重，导致测温练习成功率低。教师事后手工录入 40 人数据极其繁琐。

解决方案架构

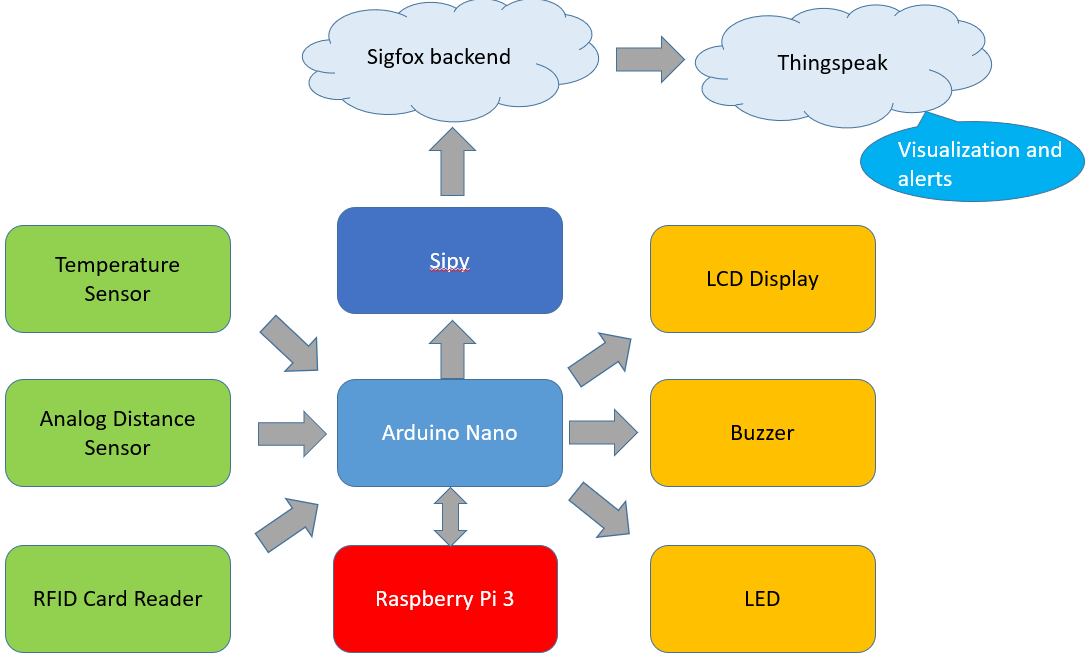

核心理念：自动测量合法用户体温，数据云端存储，异常自动报警。对应联合国可持续发展目标 (SDG) "良好健康与福祉"。

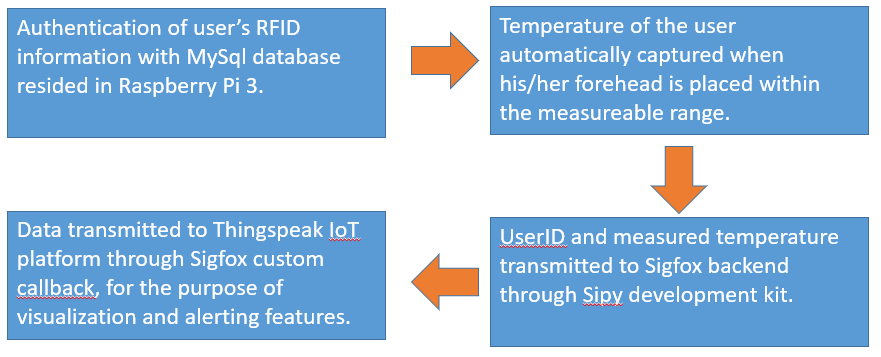

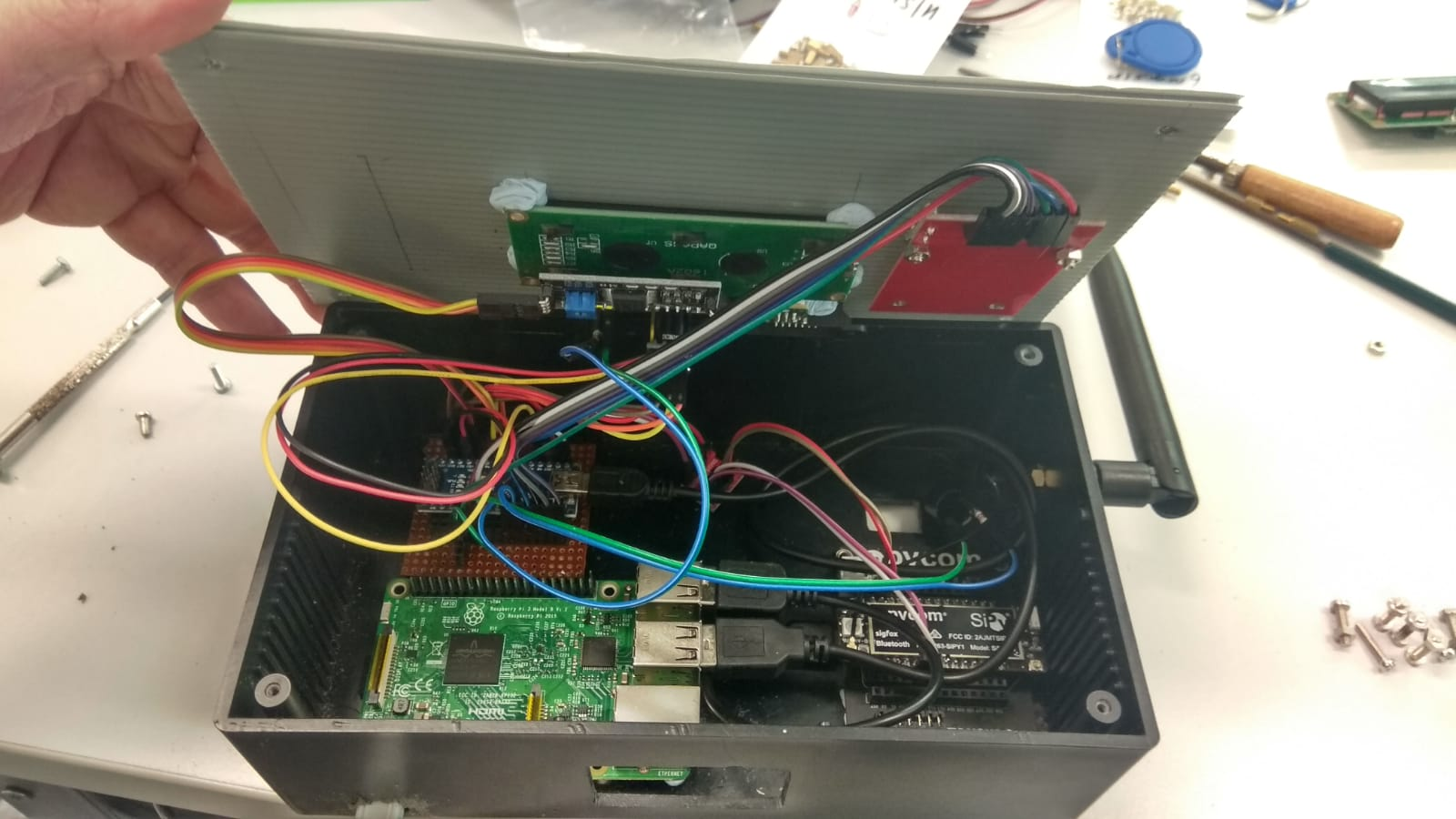

核心流程：Raspberry Pi + Arduino 协同

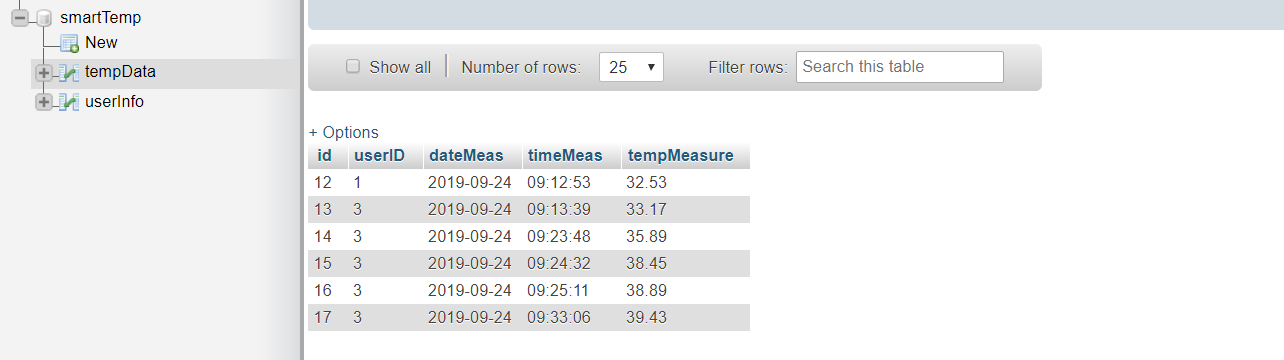

1. Raspberry Pi 运行 Python 程序管理 MySQL 数据库，自动建表
2. 串口等待 Arduino 数据
3. 用户刷 RFID 卡 → Arduino 发送 UID → Pi 校验合法性
4. 合法用户：LCD 显示欢迎，提示测温

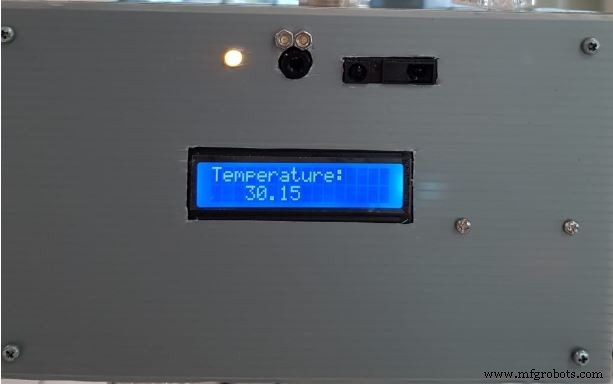

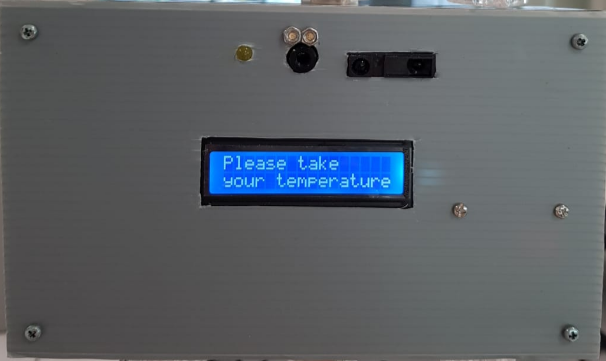

5. 测距传感器确认用户就位 → 红外测温 → LCD 显示结果
6. 有效温度 (28-42℃) → 经串口发送 Pi (入库 MySQL) 与 SiPy (上传 Sigfox/ThingSpeak)

握手同步机制：双方通过 "READY"/"RECEIVED" 信号同步，避免时序竞争。

Sigfox 云端上传 (SiPy)

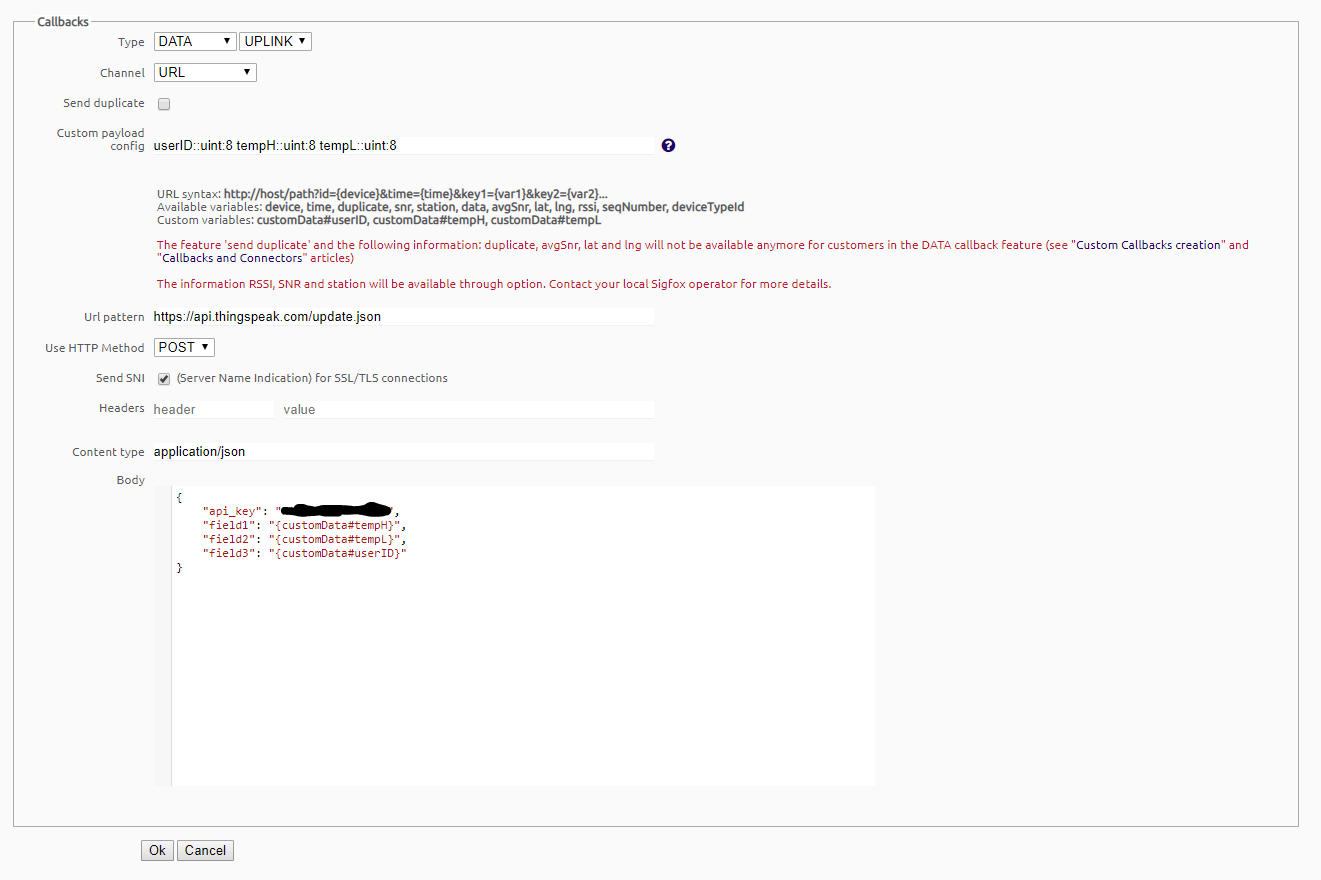

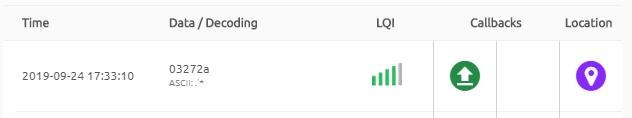

SiPy 解析温度整数/小数部分，以字节数组上传 Sigfox 后台，再经回调转发 ThingSpeak。自定义载荷格式确保字段对应正确。

云端数据处理 (ThingSpeak + MATLAB + IFTTT)

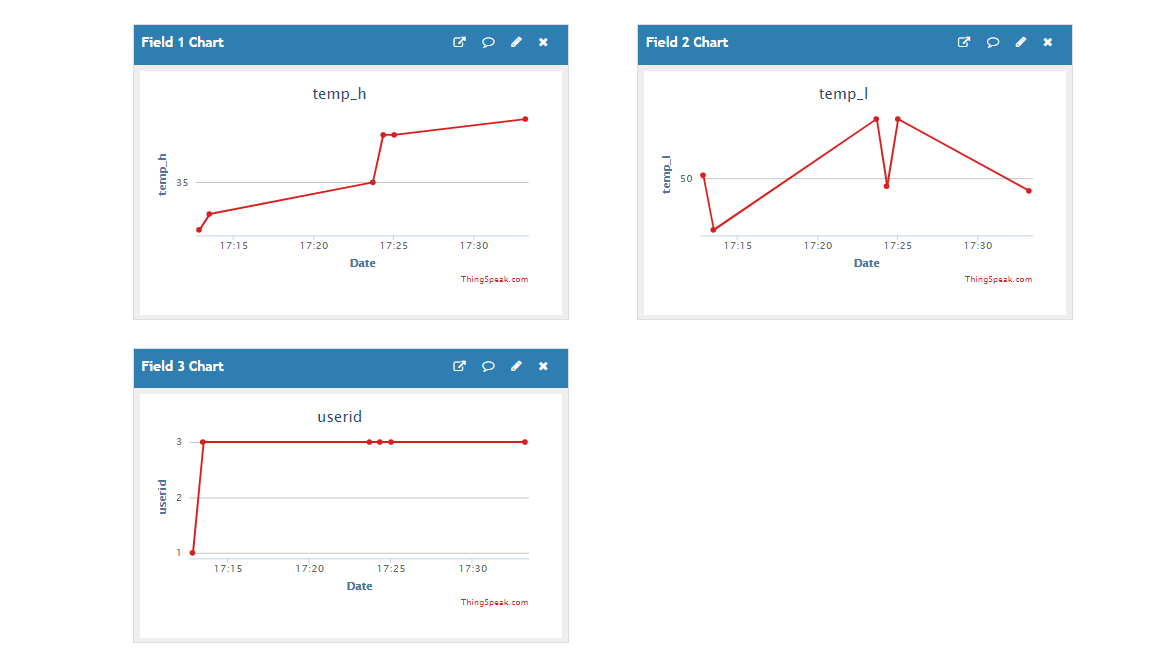

1. 私有通道：接收原始分离数据 (整数、小数、用户ID)
2. MATLAB Analysis：触发合并温度值，写入公共通道

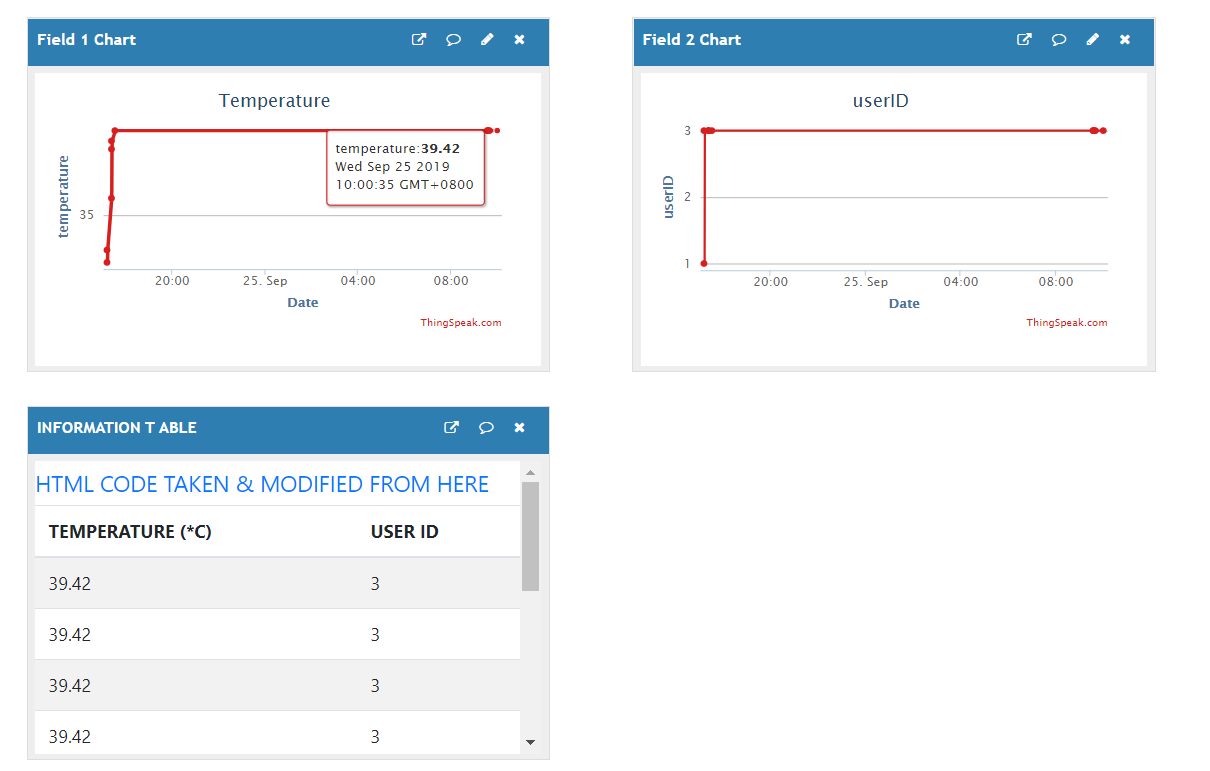

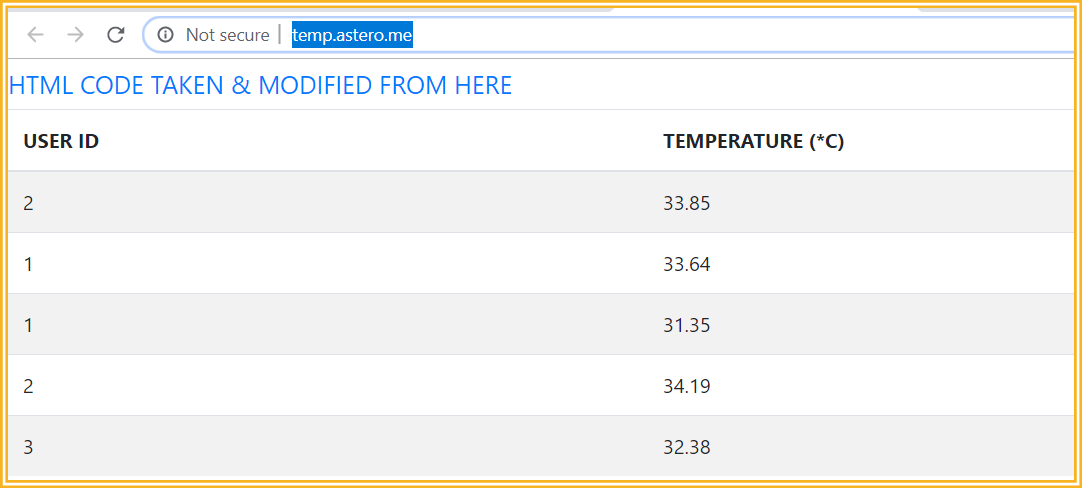

3. 公共通道：整合后的温度+用户ID，自动更新表格

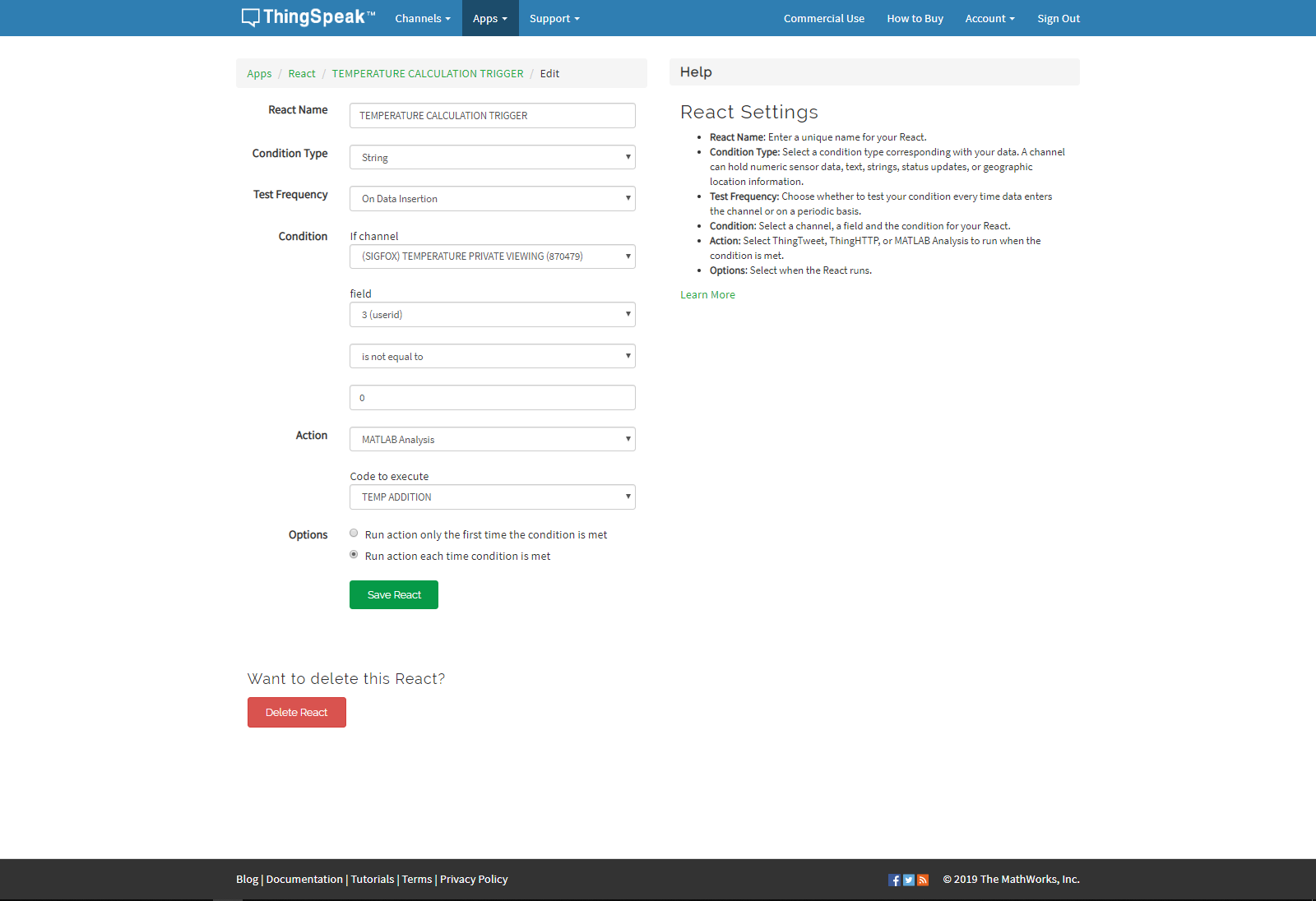

4. React 触发：新数据到达时运行 MATLAB 脚本

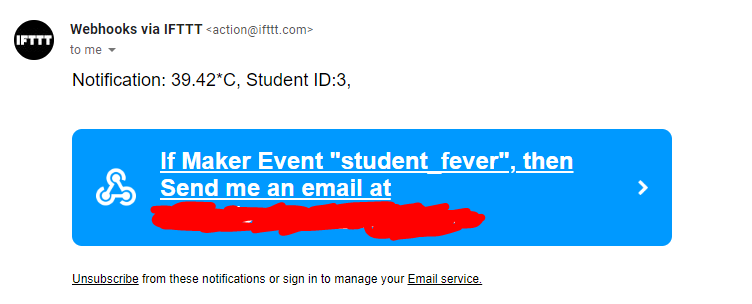

5. IFTTT Webhooks：温度 ≥ 38℃ 触发邮件报警管理员

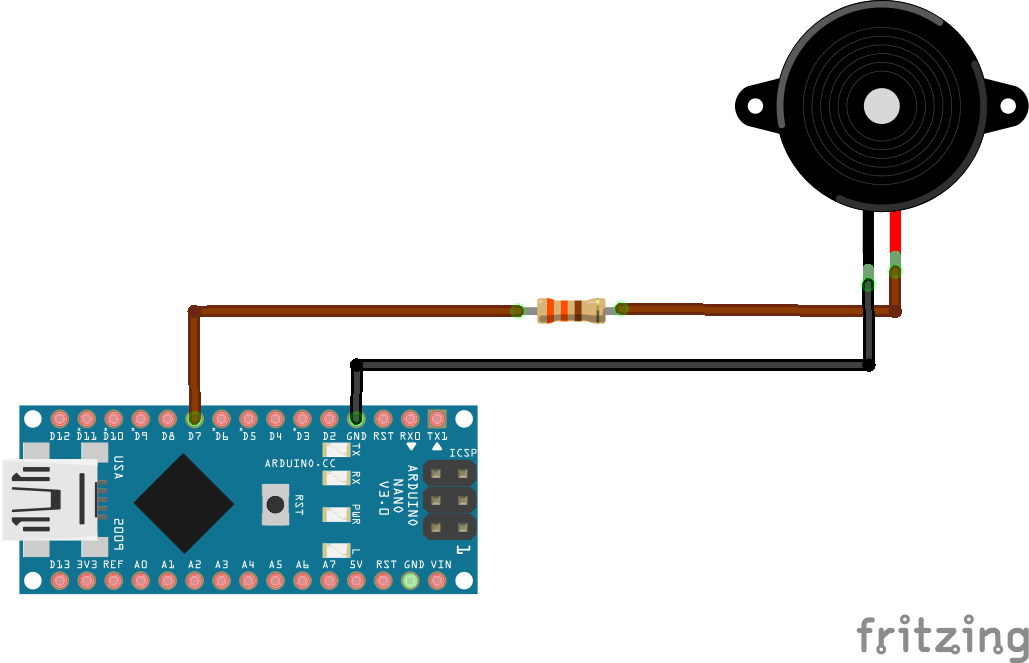

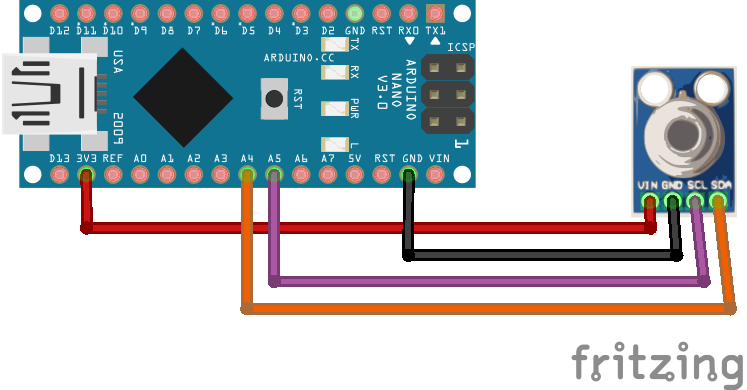

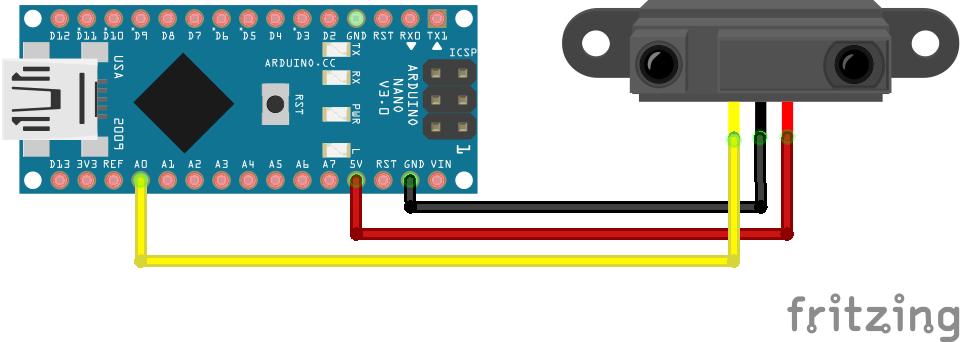

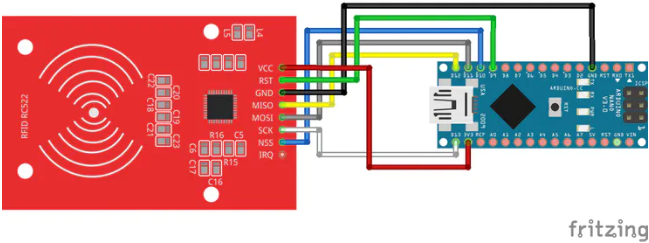

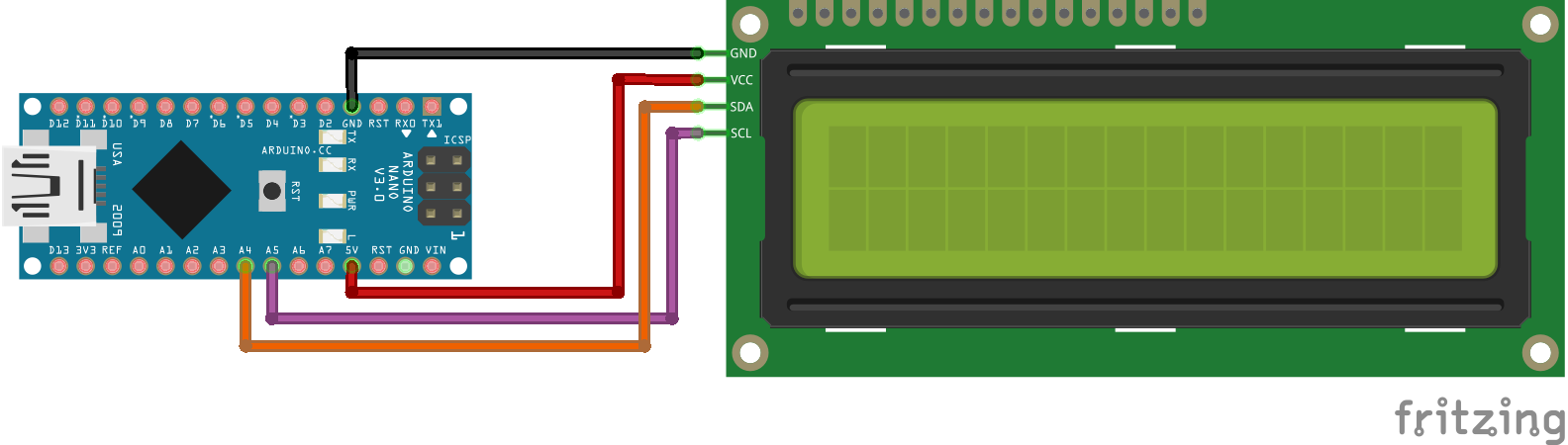

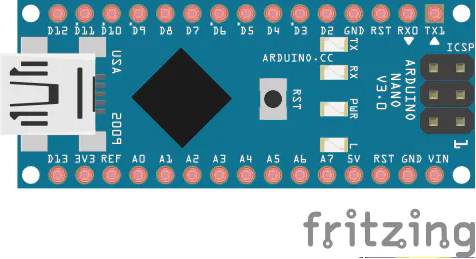

硬件接线指南 (Arduino Nano)

Raspberry Pi 环境搭建

1. 刷写 Raspbian 系统 (推荐 balenaEtcher)

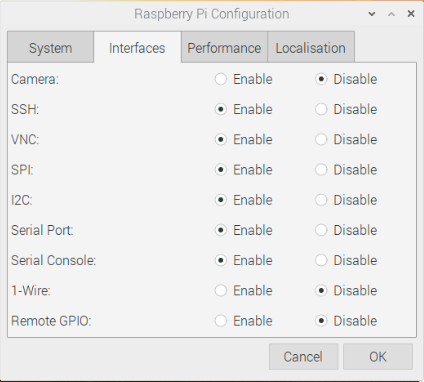

2. 启用 SSH/VNC，可选配置静态 IP

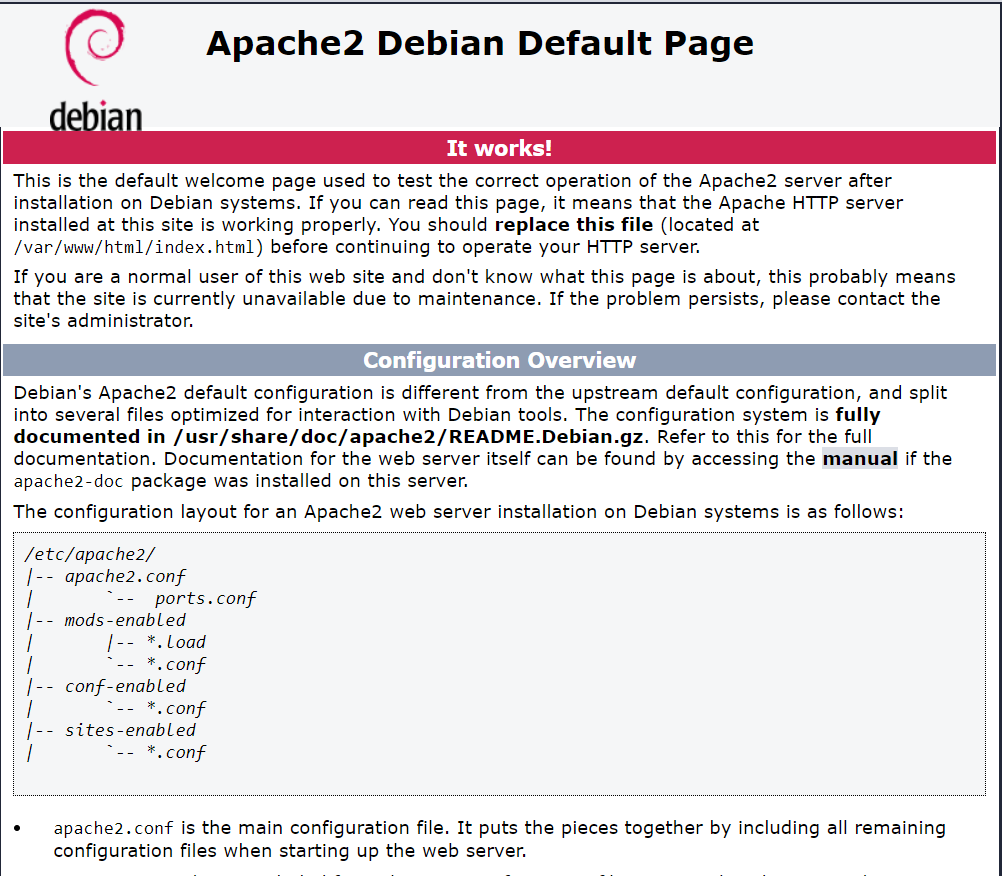

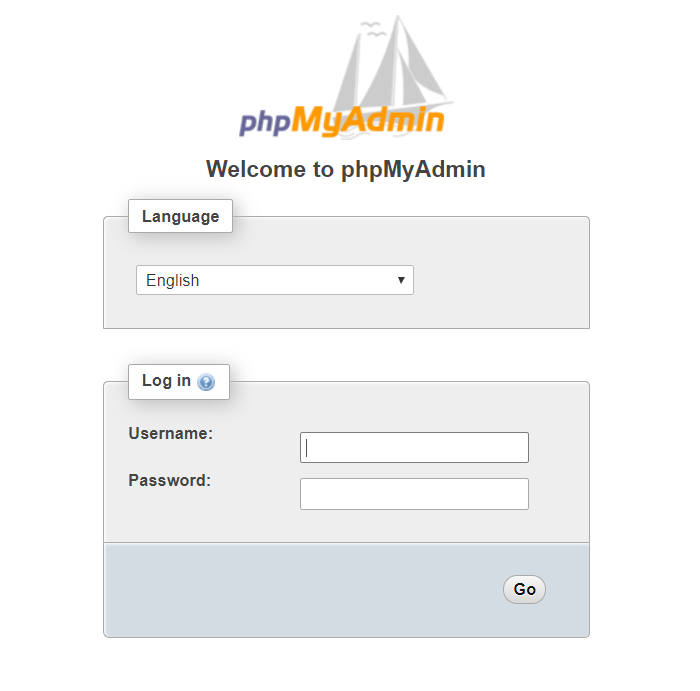

3. 安装 Apache2 + PHP + MariaDB + phpMyAdmin
4. 配置 MySQL root 用户权限

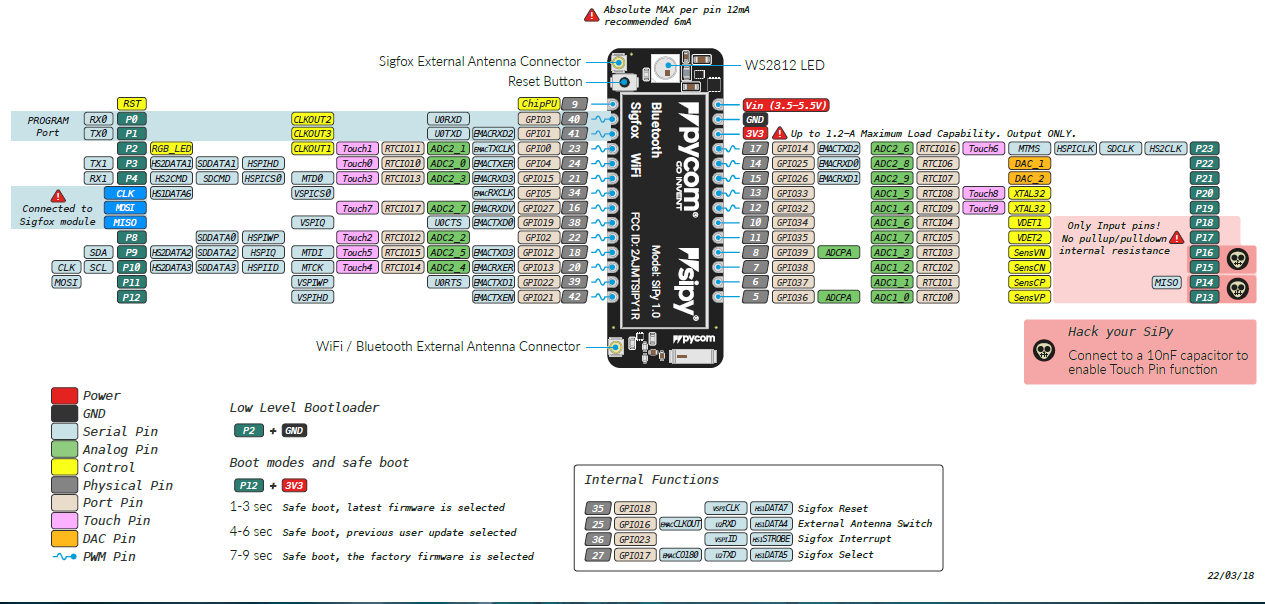

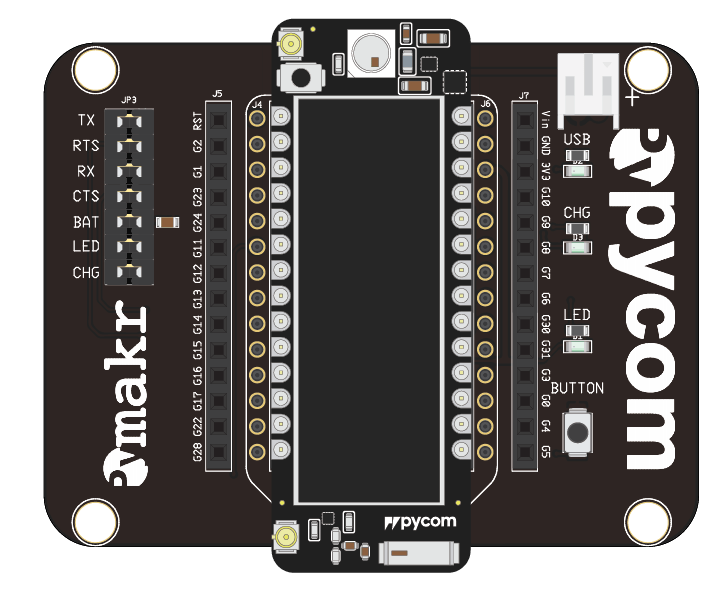

SiPy 扩展板 2.0 设置

1. 安装 SiPy 模块 (复位键朝 USB 口)

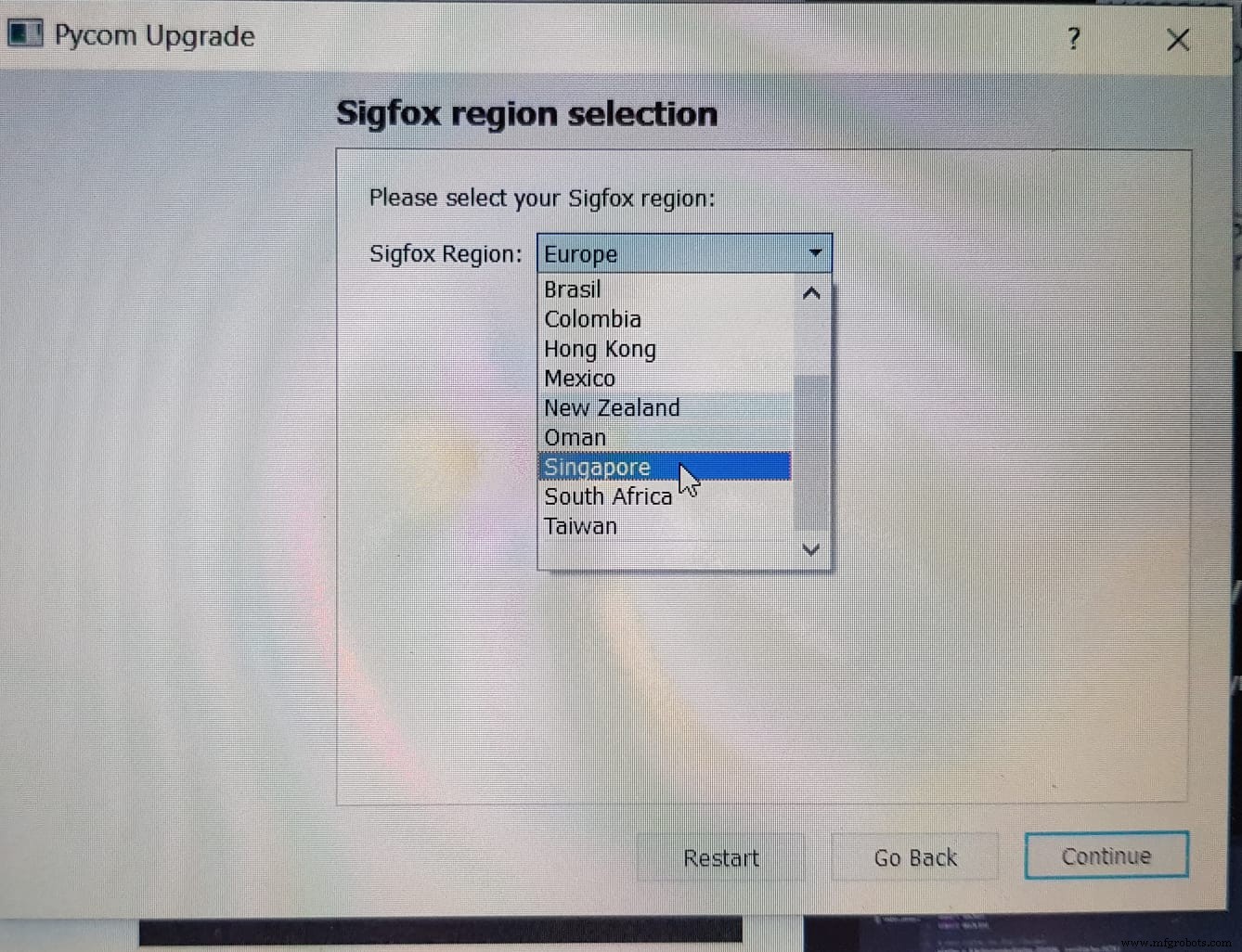

2. 固件升级 (选对 RCZ 区域，避免 ID/PAC 全 F)

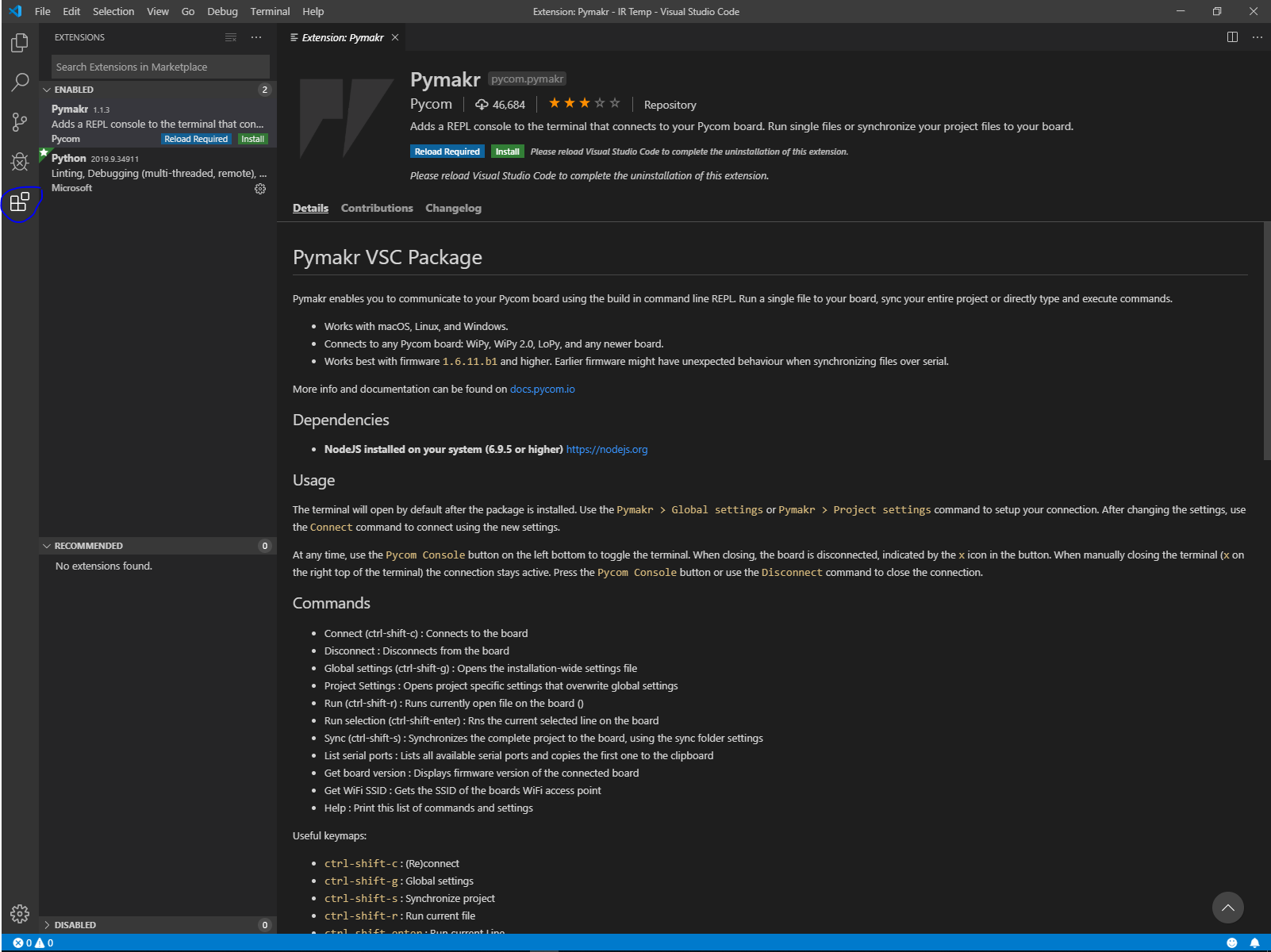

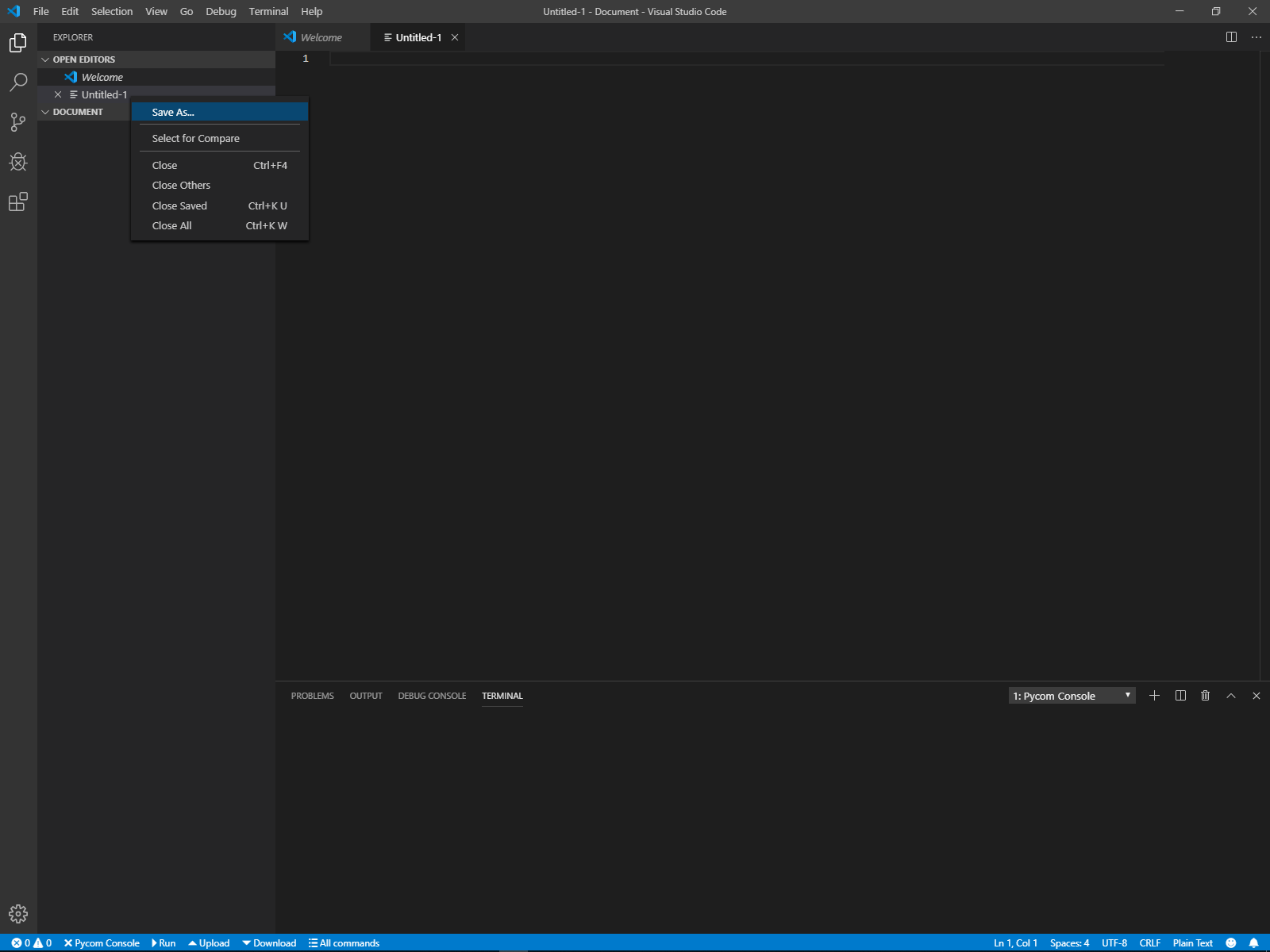

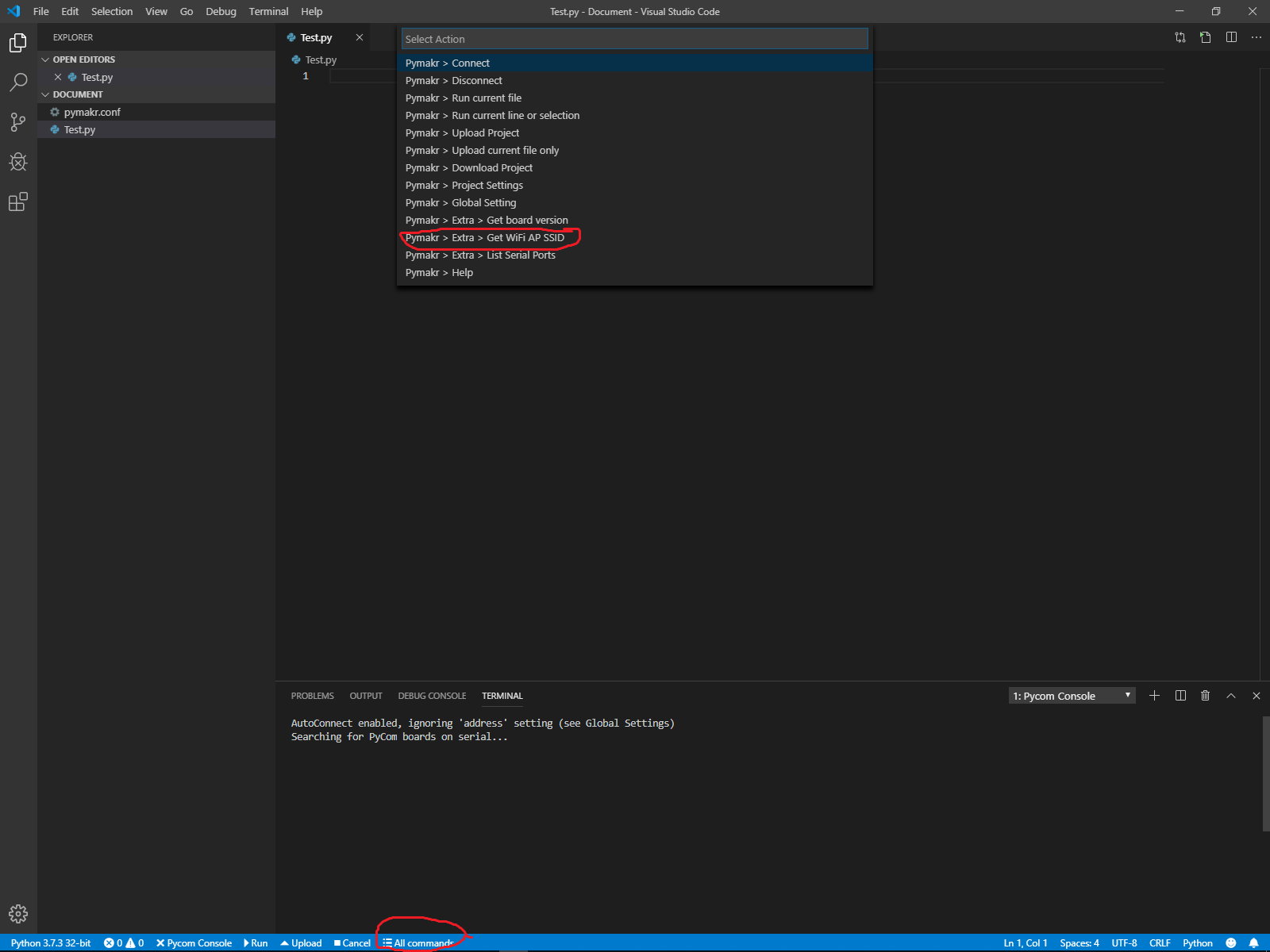

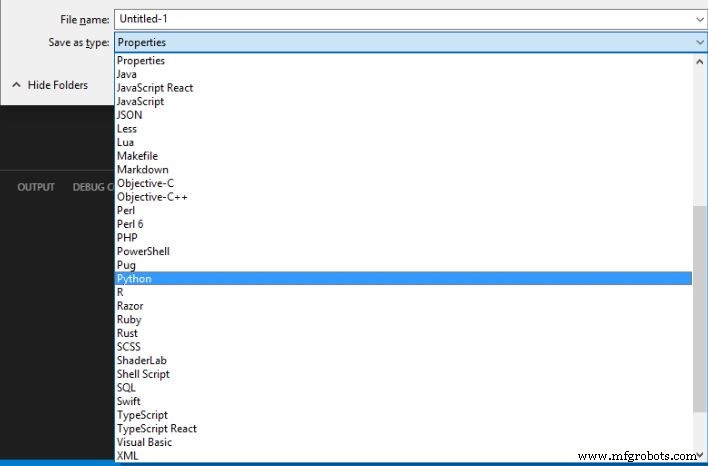

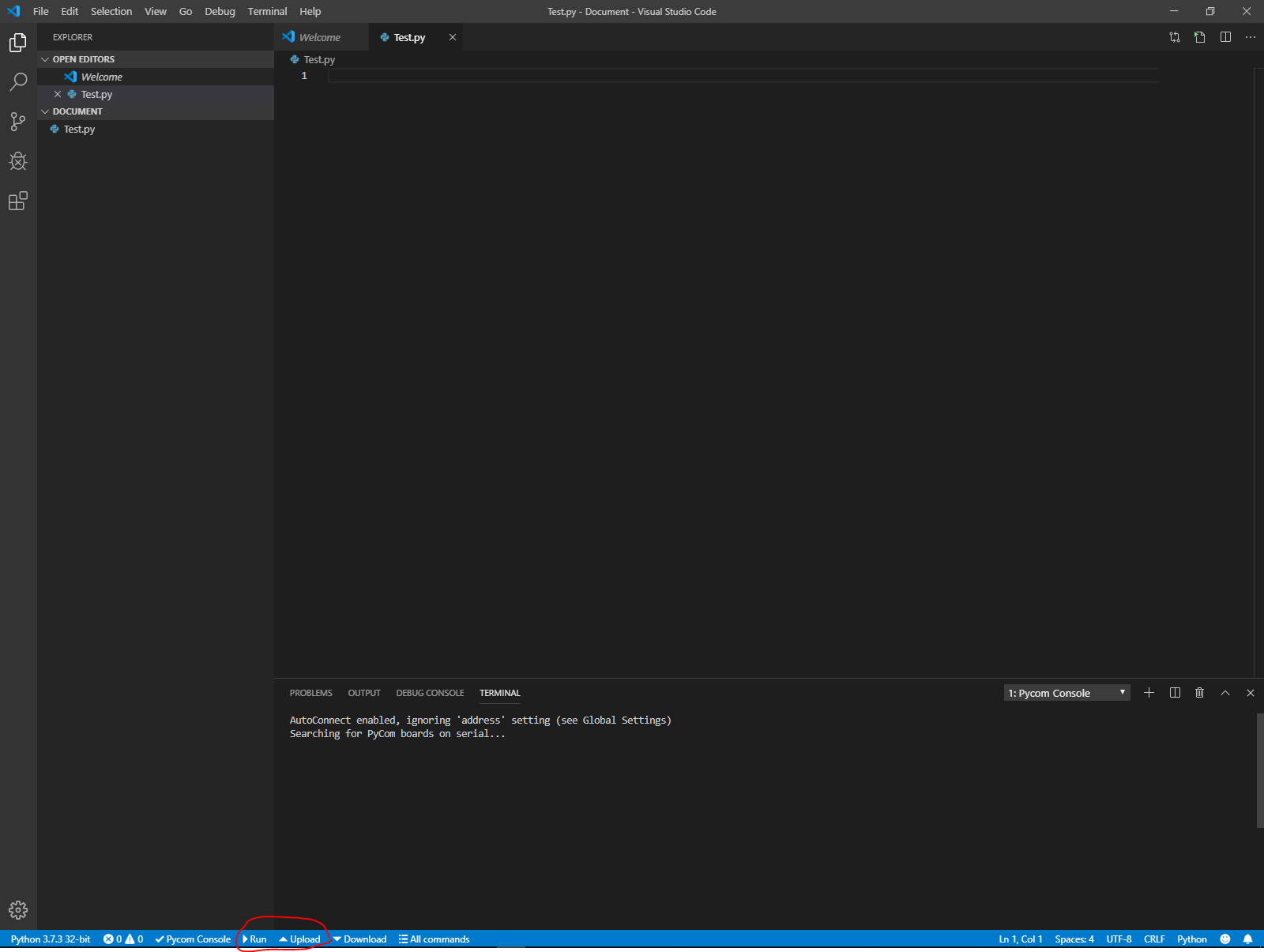

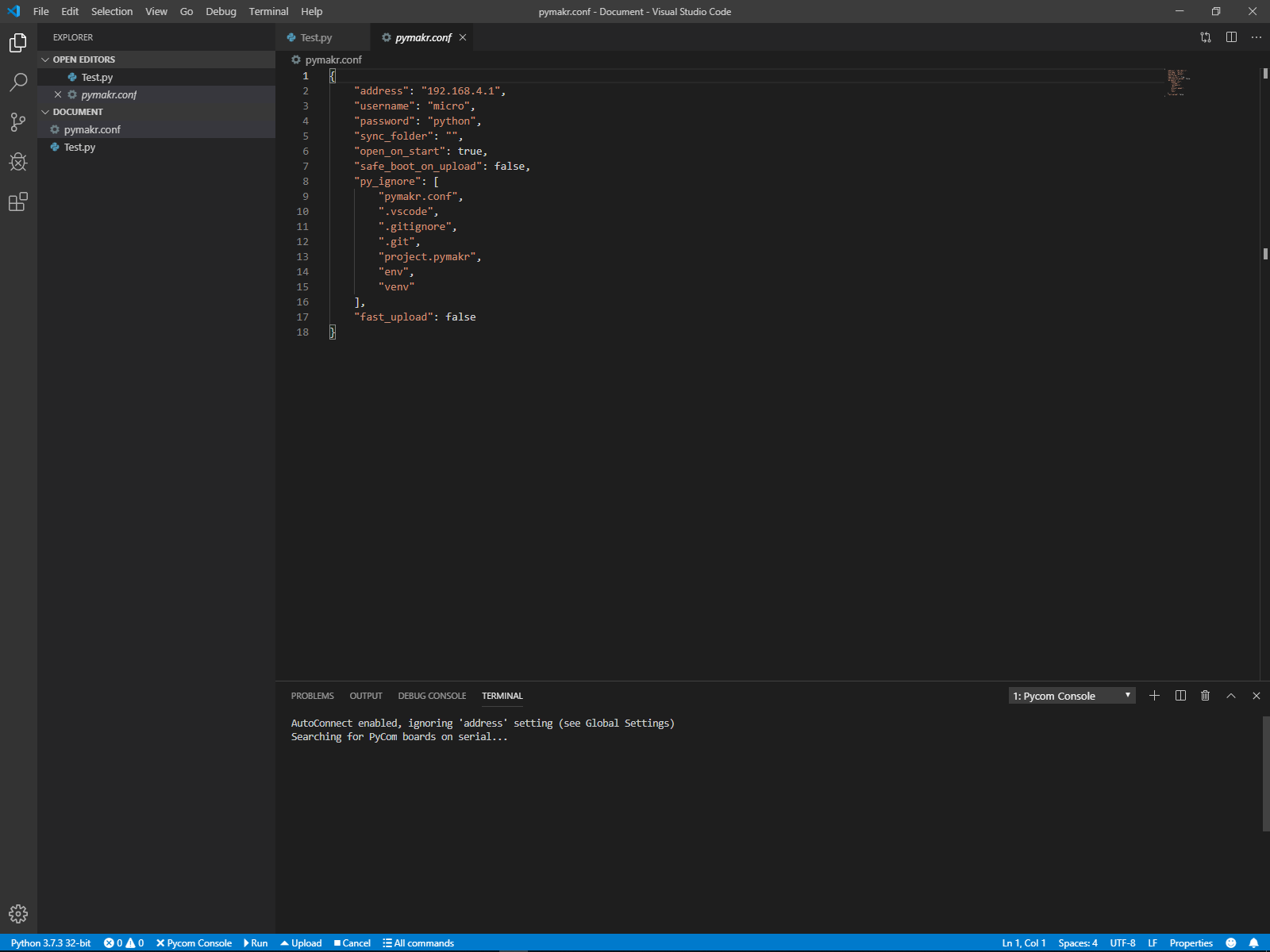

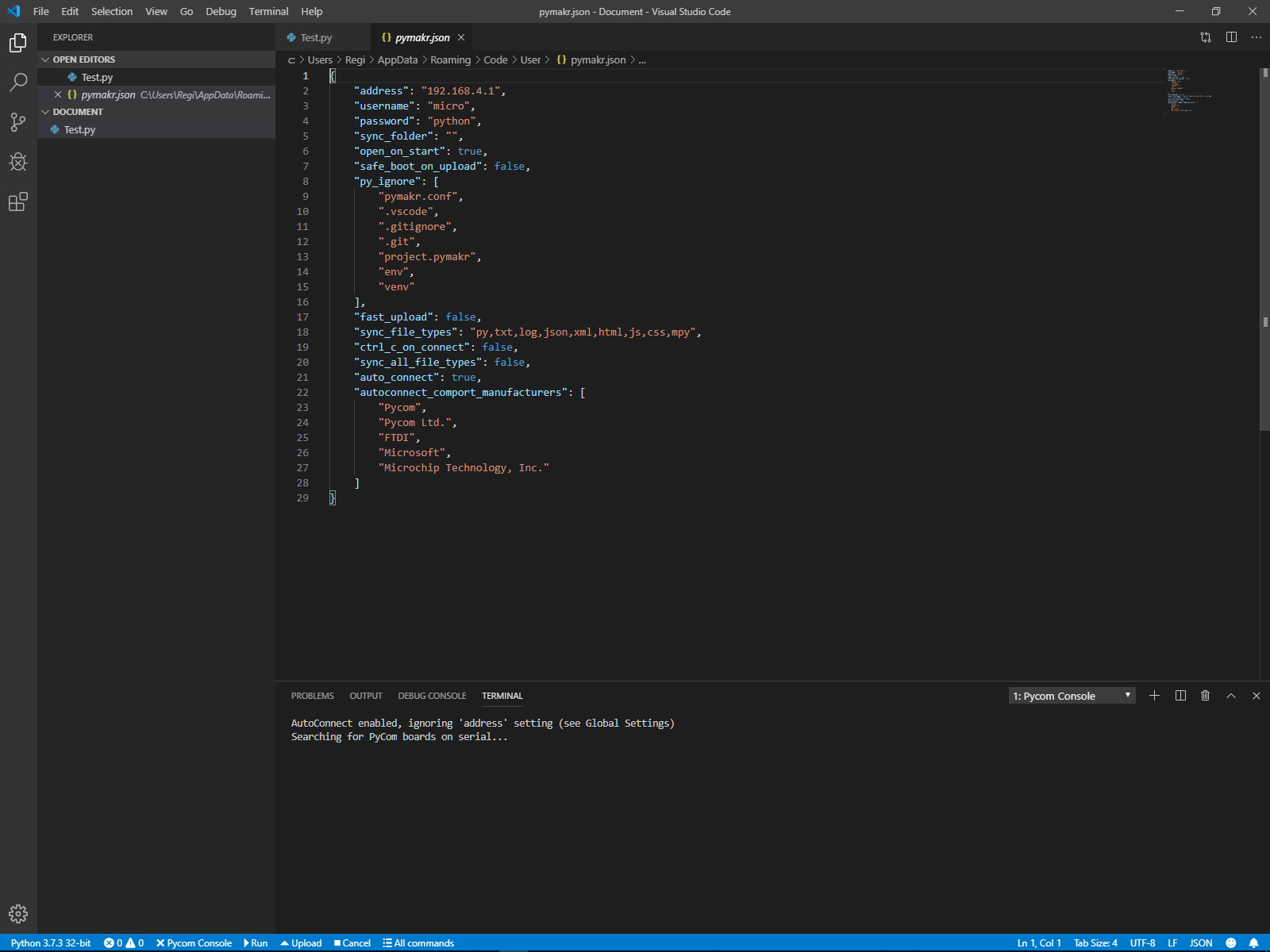

3. 安装 VS Code + Pymakr + Node.js

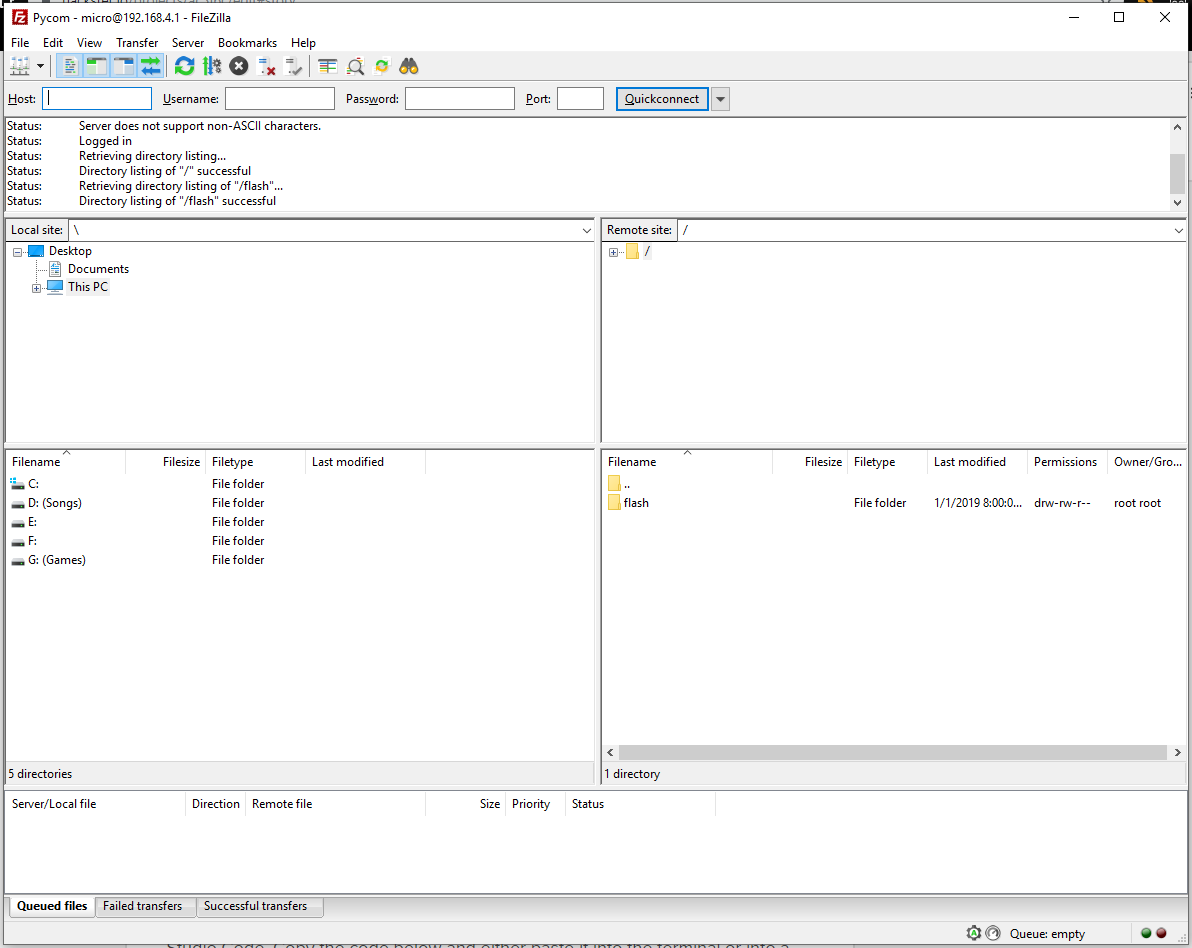

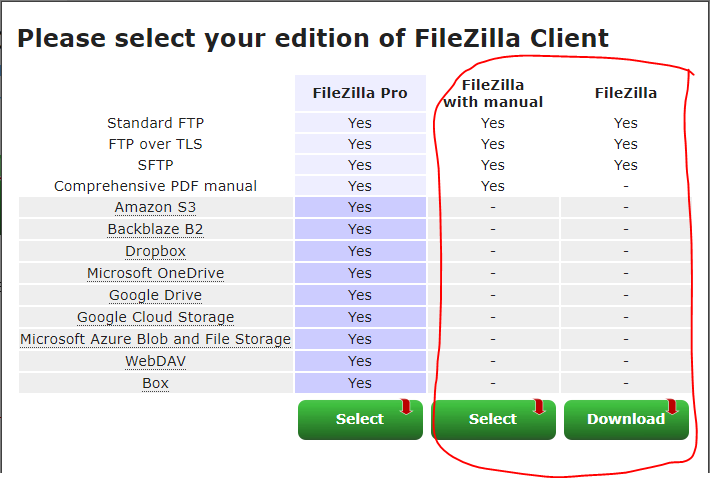

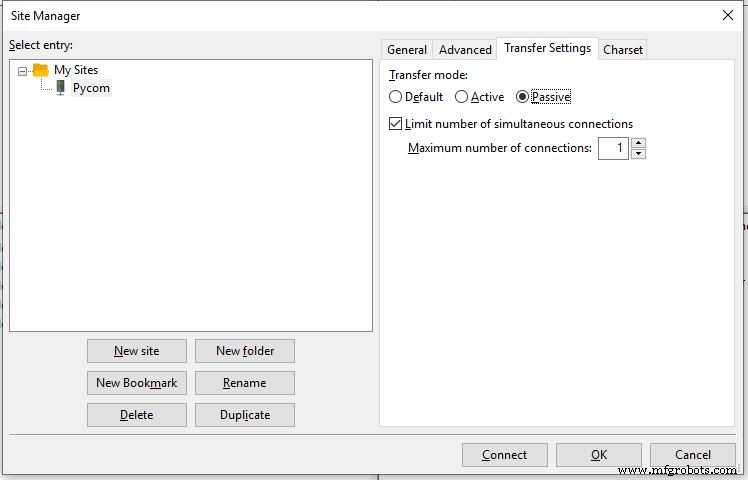

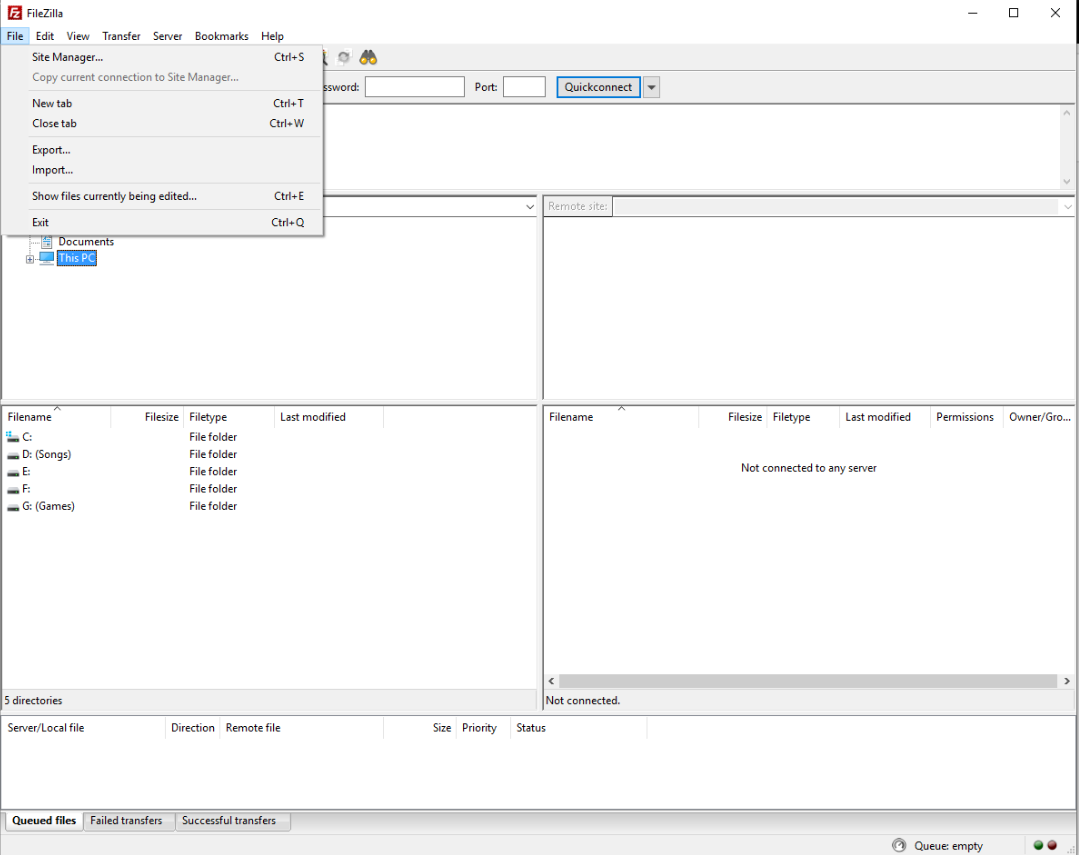

4. 通过 FTP (FileZilla) 管理闪存文件

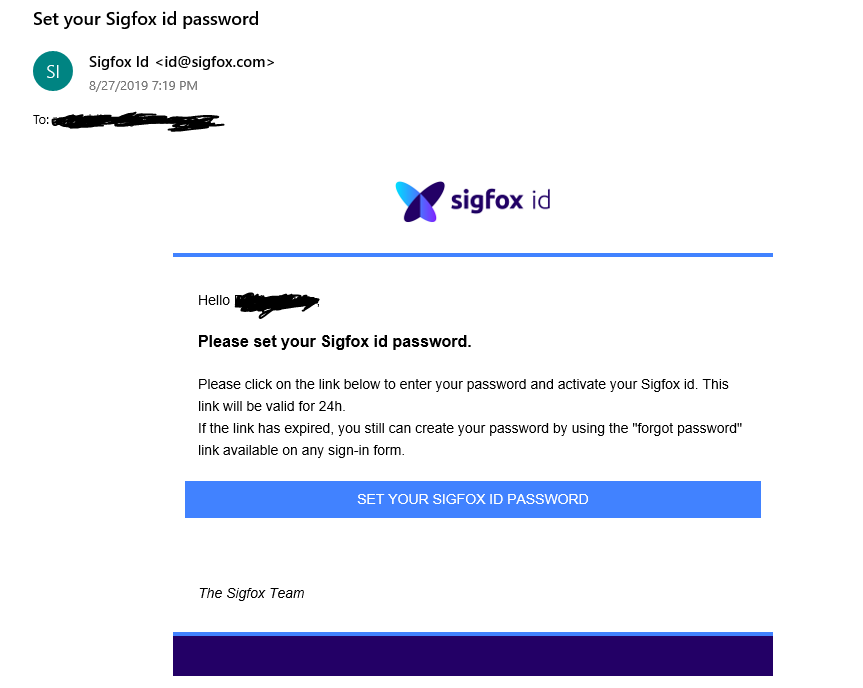

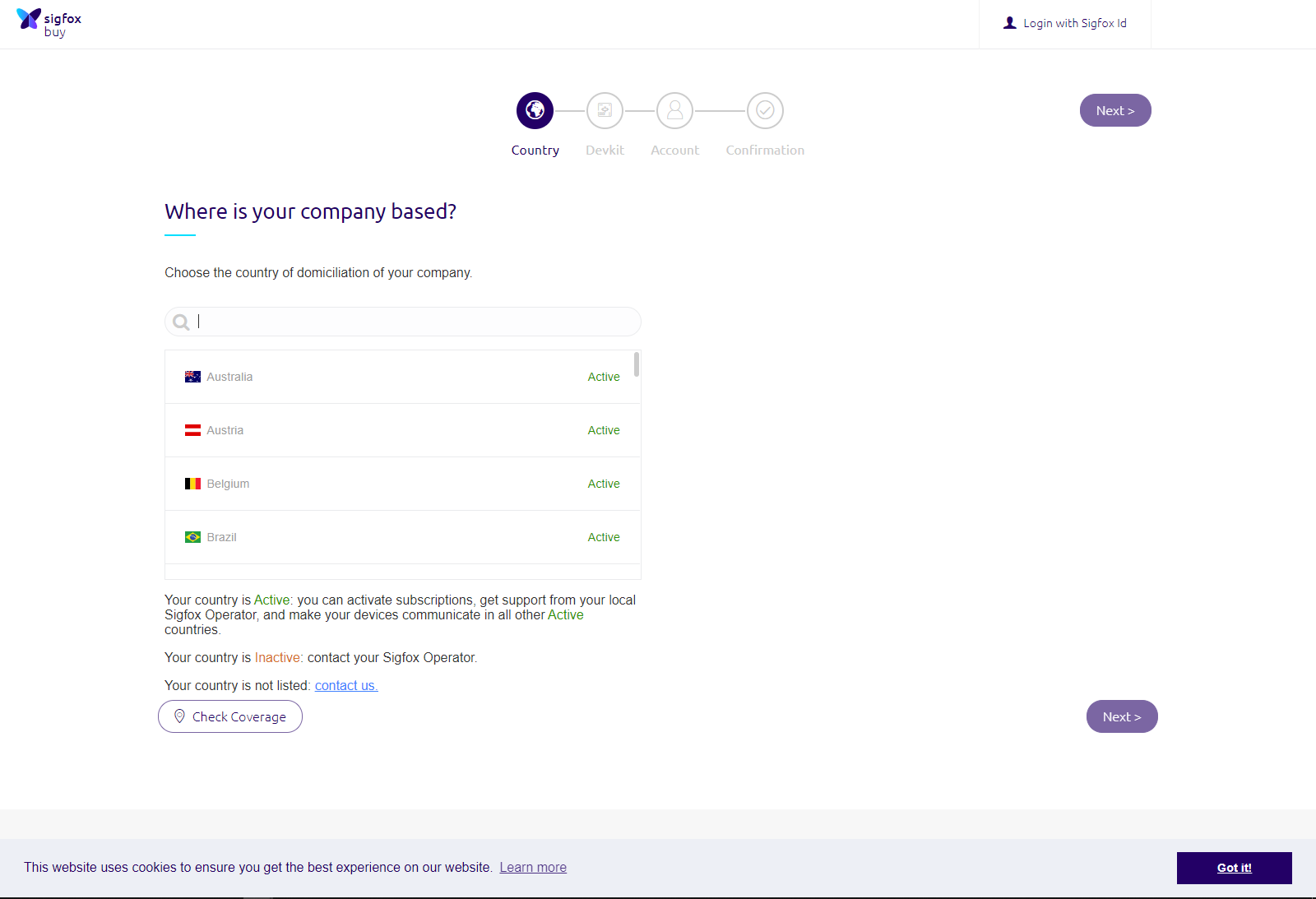

Sigfox 后台注册

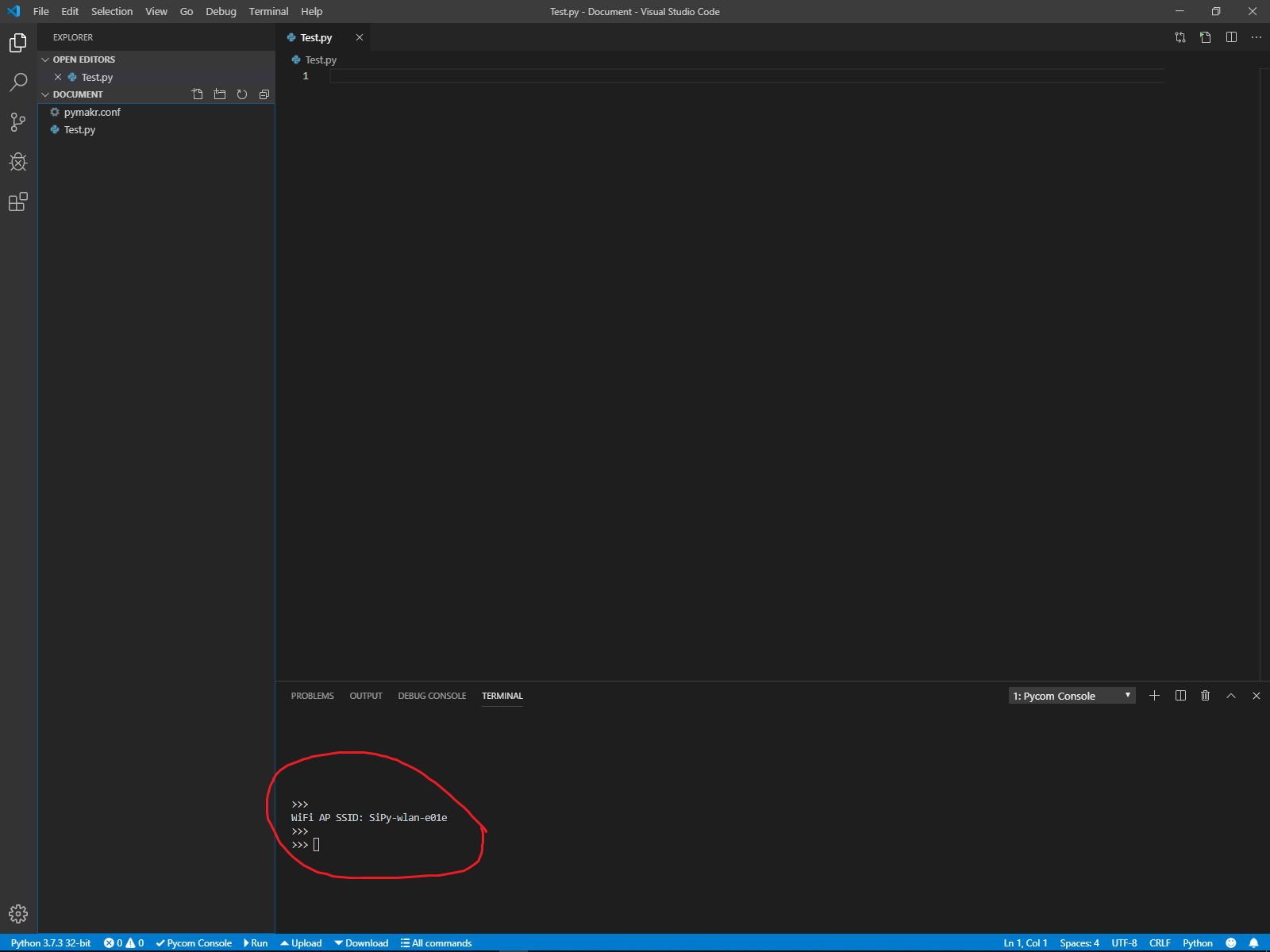

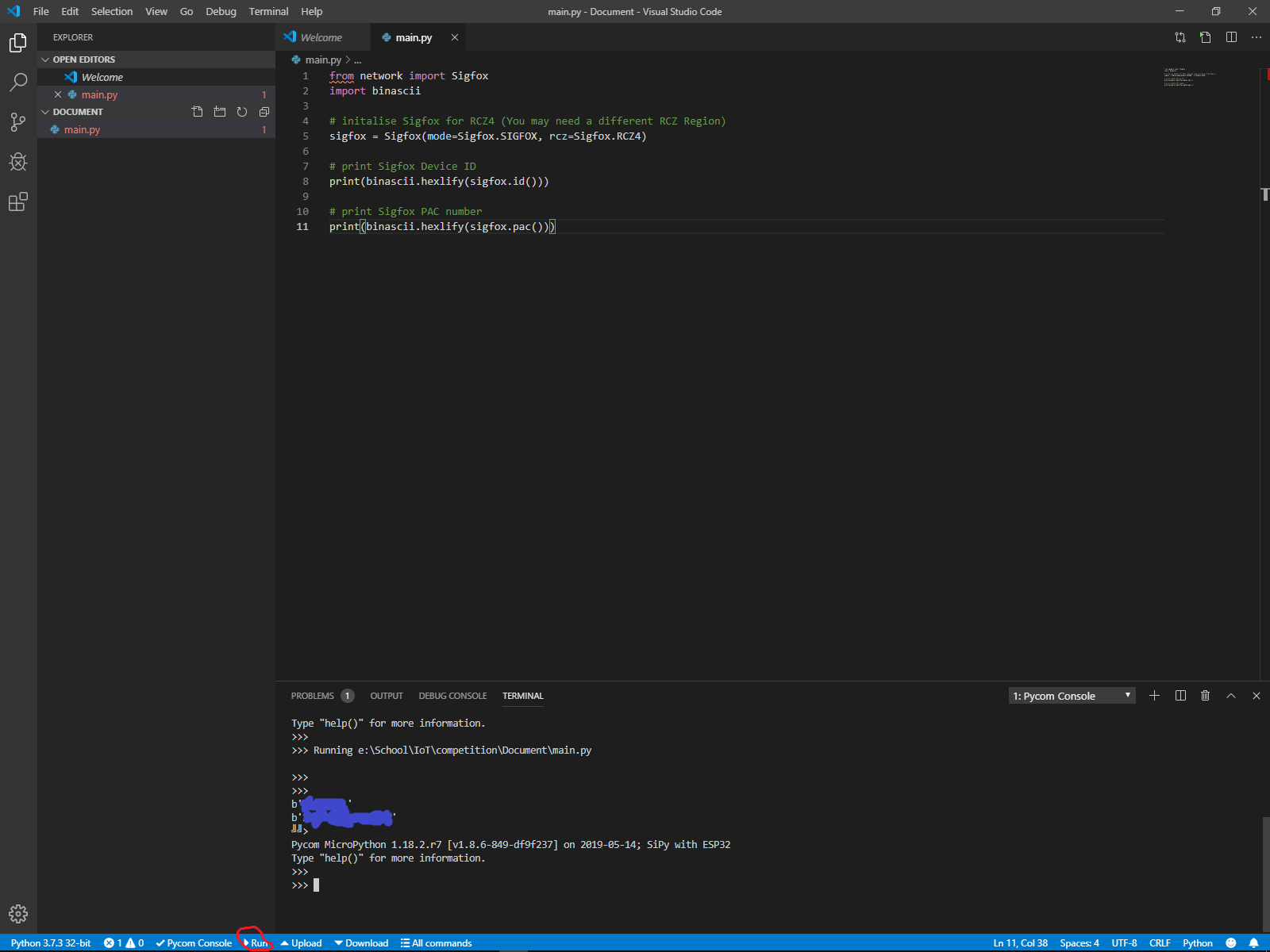

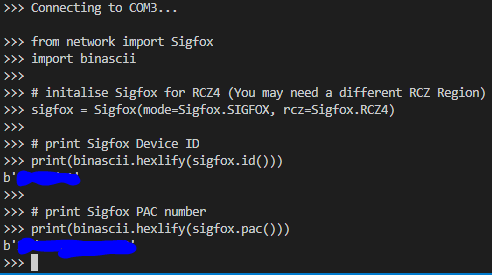

运行代码获取 Device ID 与 PAC 号，在 Sigfox 后台注册设备，选择正确国家区域。

云端完整配置流程

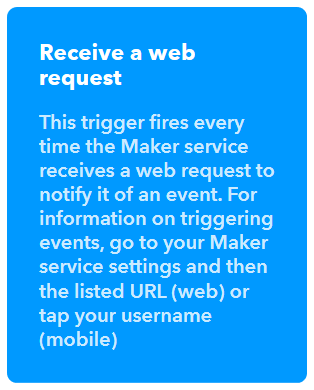

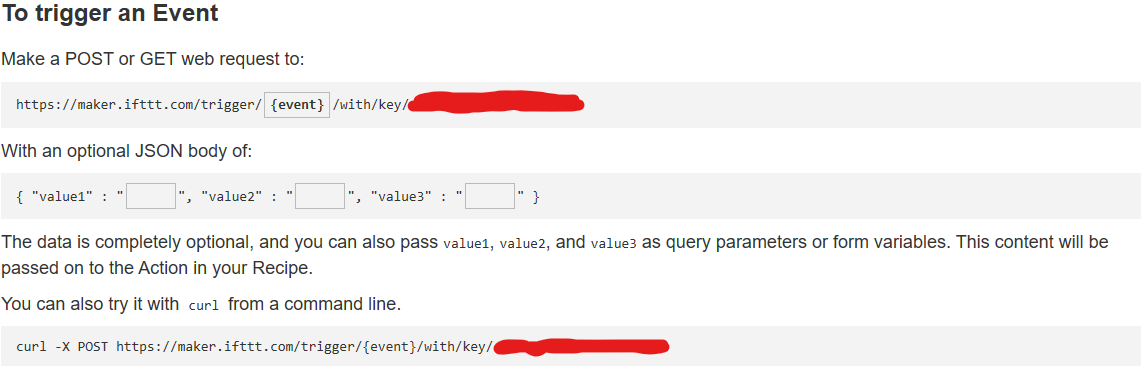

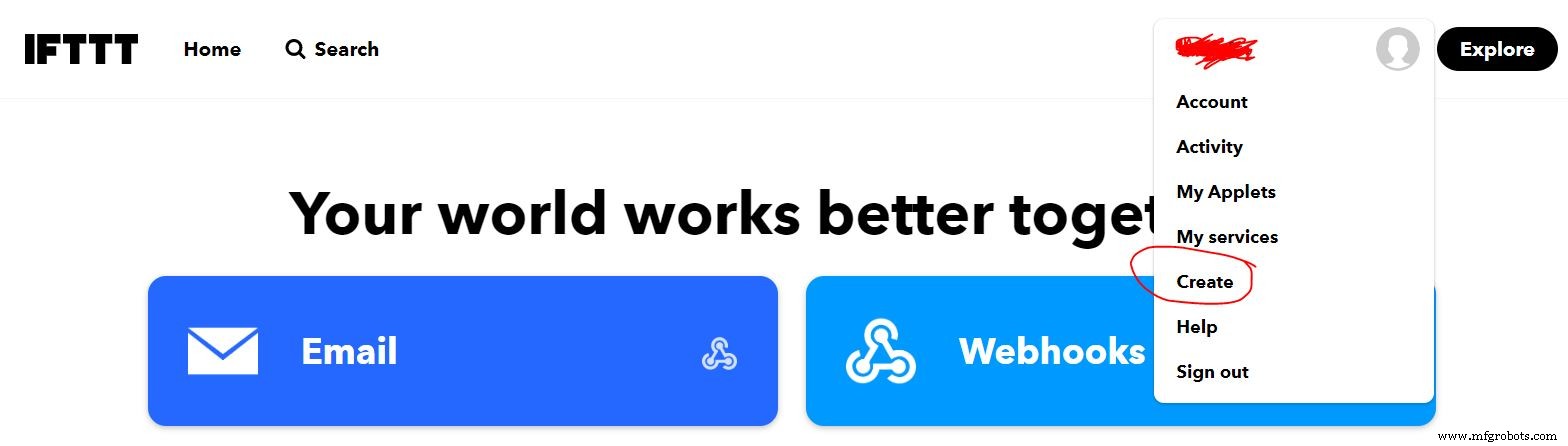

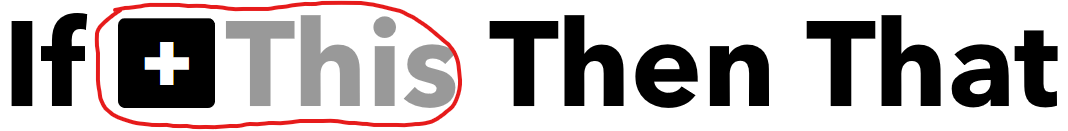

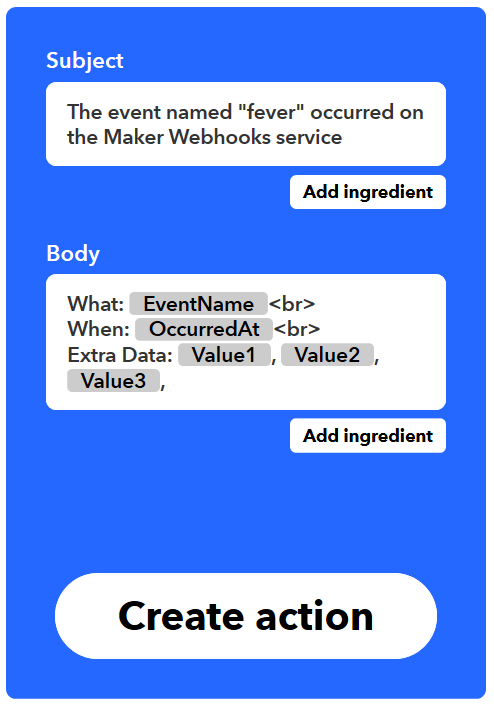

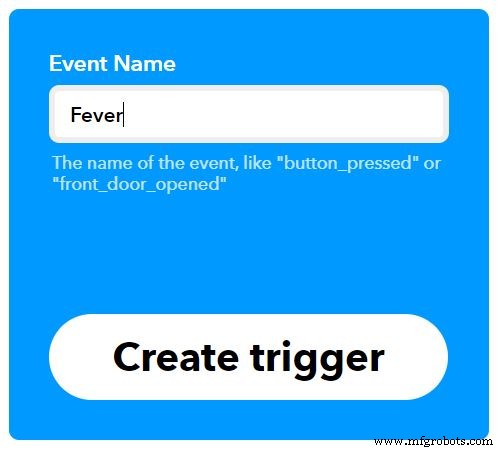

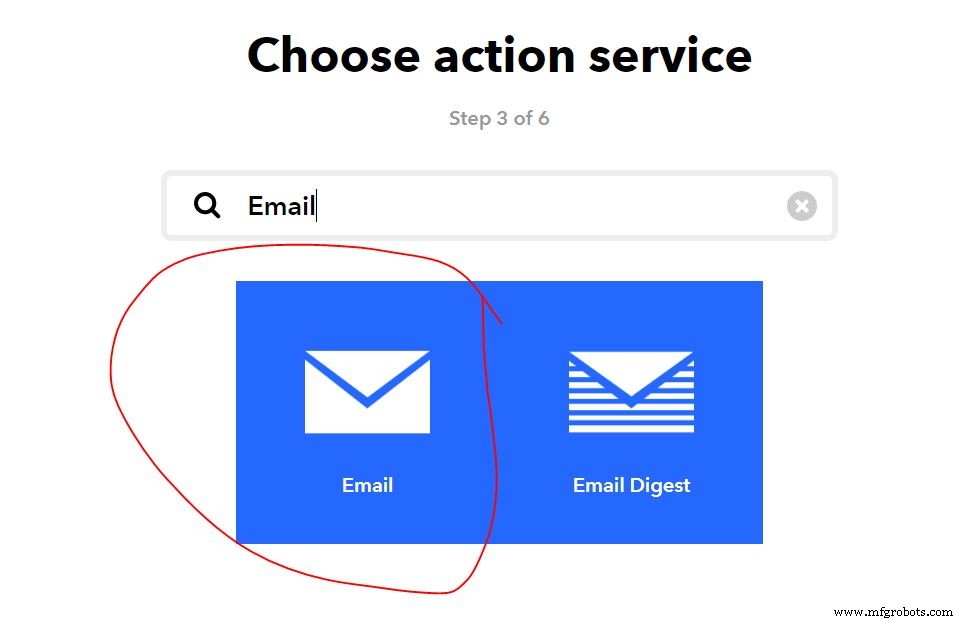

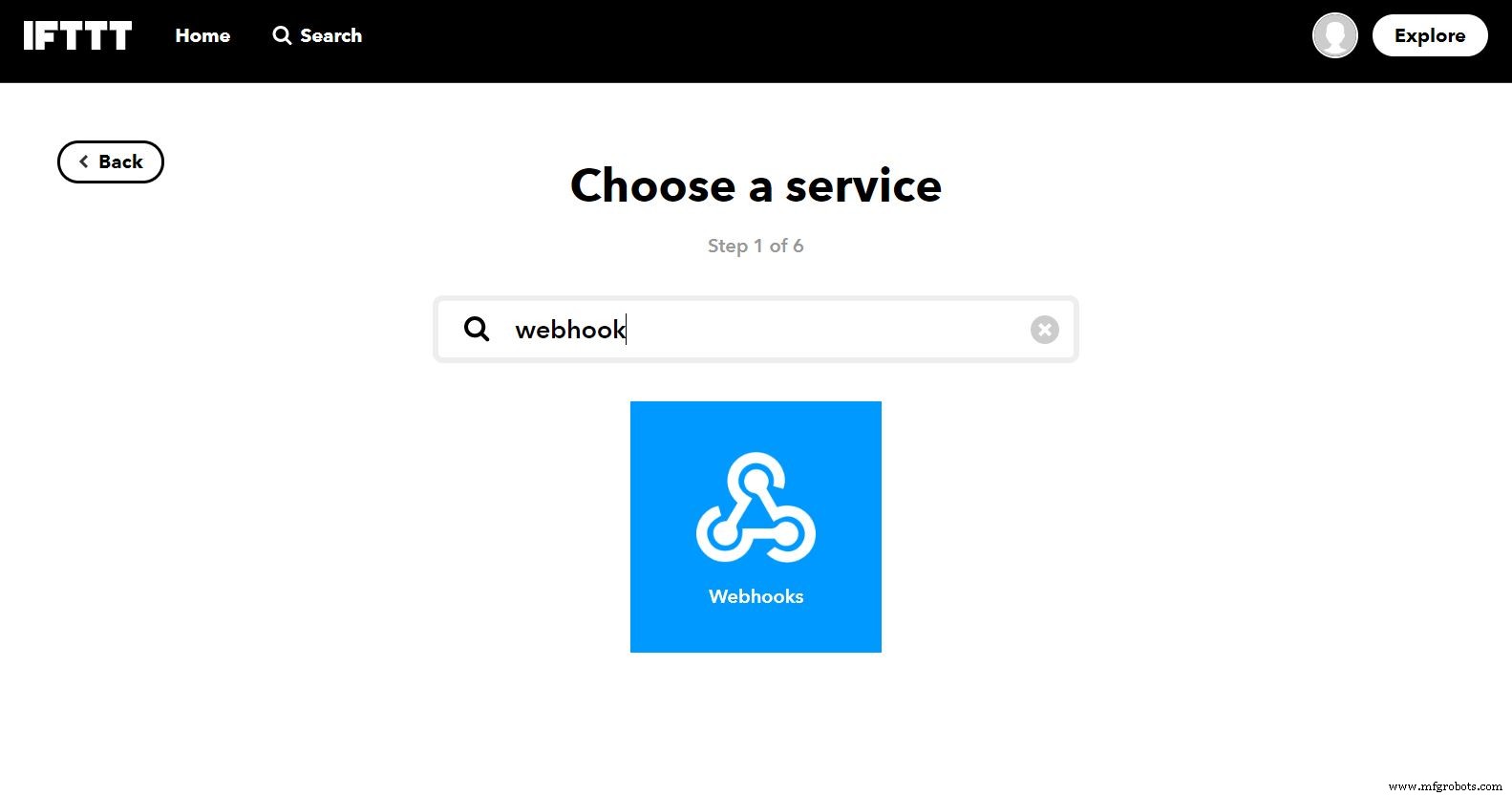

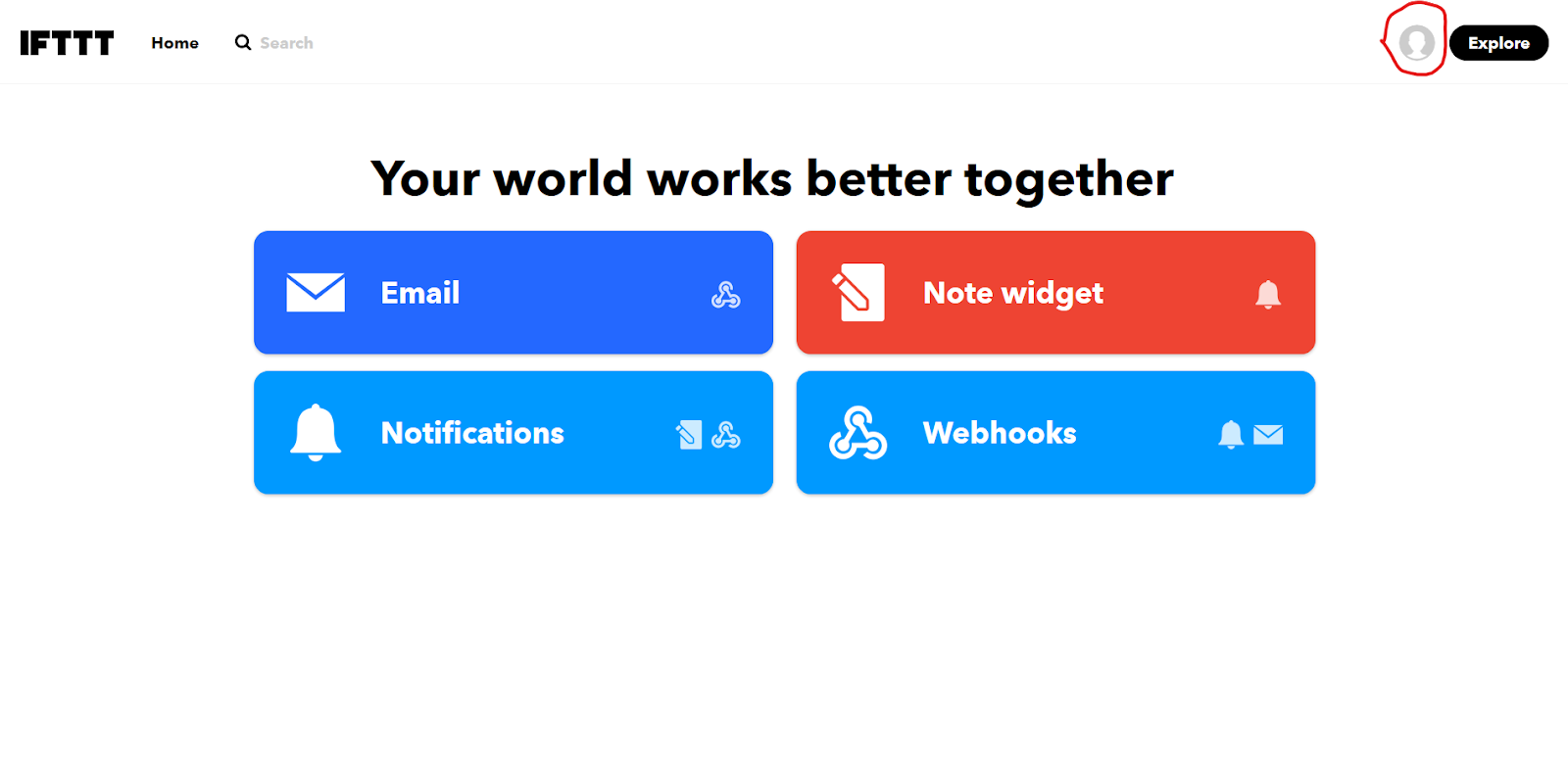

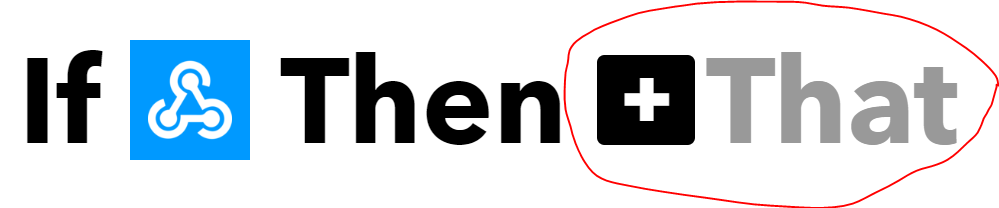

1. IFTTT 创建 Webhooks → Email 报警链

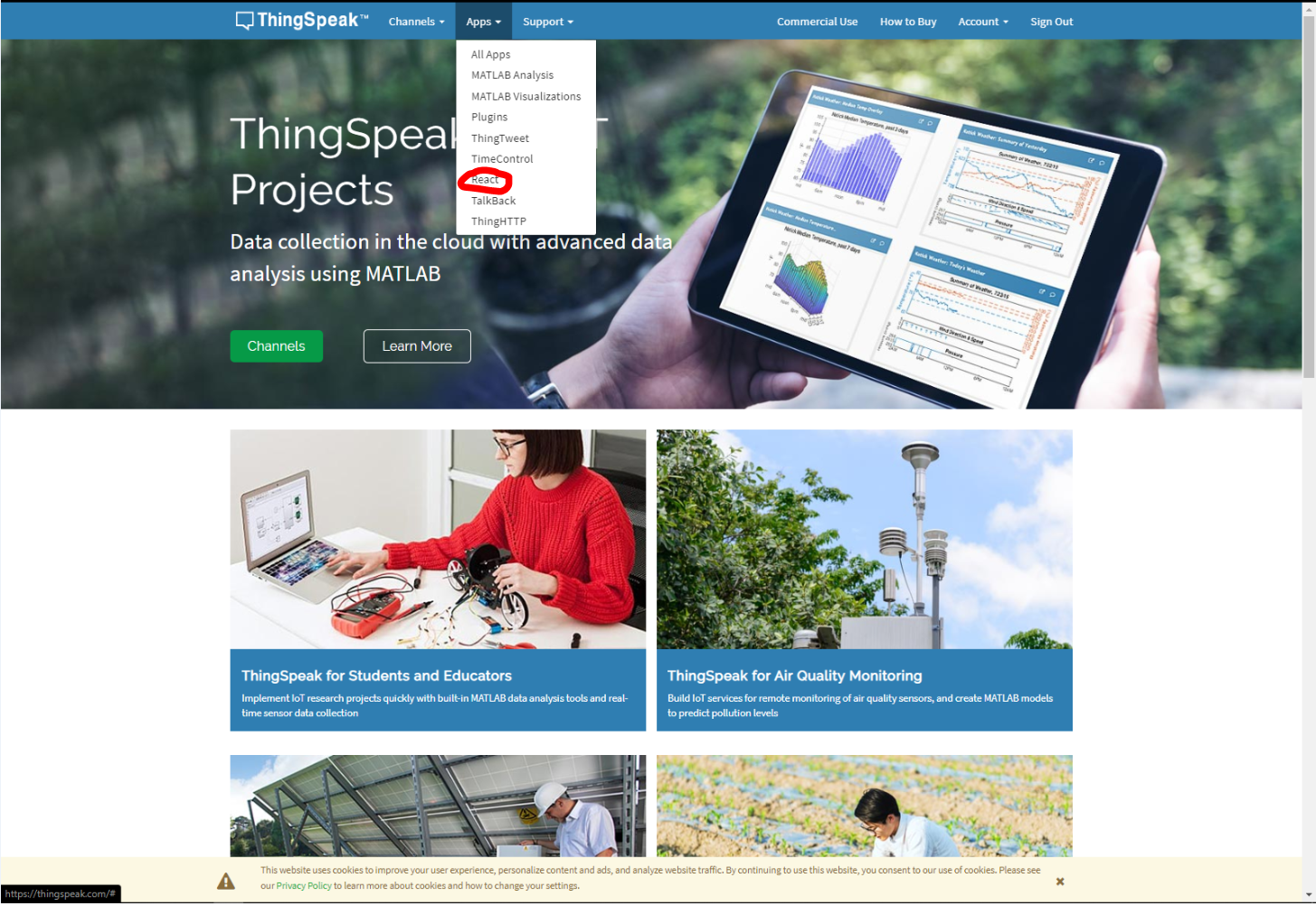

2. ThingSpeak 建立私有/公共双通道
3. 配置 React 触发 MATLAB 分析脚本
4. MATLAB 脚本合并温度值、写入公共通道、判断发热触发 IFTTT

核心代码

Arduino Nano (C/C++)

/* 90% 原创 by Aden (https://www.astero.me) */
/* RFID 库参考 ryand1011 / miguelbalboa */
/* MLX90614 库参考 Adafruit */

#include <SPI.h>
#include <MFRC522.h>
#include <LiquidCrystal_I2C.h>
#include <Wire.h>
#include <SoftwareSerial.h>
#include <Adafruit_MLX90614.h>

#define RST_PIN 9
#define SS_PIN 10
#define BUZZER_PIN 7
#define LED_PIN 6
#define DIST_SENSE_PIN A0

MFRC522 mfrc522(SS_PIN, RST_PIN);
LiquidCrystal_I2C lcd(0x27, 16, 2);
Adafruit_MLX90614 mlx = Adafruit_MLX90614();
SoftwareSerial unoSerial(2, 3);

boolean tapped = true;
boolean confirmation = false;

String GetUID() {
  String uid = "";
  for (byte i = 0; i < mfrc522.uid.size; i++) {
    uid += String(mfrc522.uid.uidByte[i] < 0x10 ? " 0" : " ");
    uid += String(mfrc522.uid.uidByte[i], HEX);
  }
  String noSpace = "";
  noSpace += uid[1]; noSpace += uid[2];
  noSpace += uid[4]; noSpace += uid[5];
  noSpace += uid[7]; noSpace += uid[8];
  noSpace += uid[10]; noSpace += uid[11];
  return noSpace;
}

void setup() {
  Serial.begin(9600);
  while (!confirmation) {
    Serial.println("ARDUINO");
    confirmation = Serial.readString() == "RAPI";
    delay(1000);
  }
  SPI.begin();
  mfrc522.PCD_Init();
  mlx.begin();
  unoSerial.begin(9600);
  pinMode(BUZZER_PIN, OUTPUT);
  pinMode(LED_PIN, OUTPUT);
  lcd.init(); lcd.backlight();
}

void loop() {
  boolean readySignal = Serial.readString() == "READY";
  if (readySignal) { tapped = true; Serial.println("RECEIVED"); }

  if (tapped) {
    digitalWrite(BUZZER_PIN, 0); digitalWrite(LED_PIN, 0);
    lcd.clear();
    lcd.setCursor(0,0); lcd.print(" Please tap");
    lcd.setCursor(0,1); lcd.print(" your card.");
    delay(500);
    tapped = false;
  } else {
    if (!mfrc522.PICC_IsNewCardPresent()) return;
    if (!mfrc522.PICC_ReadCardSerial()) return;

    String card_UID = GetUID(); card_UID.toUpperCase();
    Serial.print(card_UID); Serial.print("\n");

    String rawData = Serial.readString();
    int commaPos = rawData.indexOf(',');
    String userInitial = rawData.substring(0, commaPos);
    int userID = rawData.substring(commaPos + 1).toInt();

    lcd.clear();
    if (userID != 0 && userInitial != "0") {
      lcd.setCursor(0,0); lcd.print("Welcome, ");
      lcd.setCursor(0,1); lcd.print(userInitial);

      int dist = analogRead(DIST_SENSE_PIN);
      byte temp_H = 0, temp_L = 0;
      float meas_temp = 0;
      delay(2000);

      while (dist < 170 || dist > 200) {
        dist = analogRead(DIST_SENSE_PIN);
        lcd.setCursor(0,0); lcd.print("Please take");
        lcd.setCursor(0,1); lcd.print("your temperature.");
      }

      digitalWrite(BUZZER_PIN, 1); digitalWrite(LED_PIN, 1); lcd.clear();
      meas_temp = mlx.readObjectTempC();
      temp_H = floor(meas_temp);
      temp_L = (meas_temp - temp_H) * 100;

      String sMeasTemp = String(userID) + "," + temp_H + "," + temp_L;
      Serial.println("TEMP"); Serial.println(meas_temp);

      if (meas_temp >= 28 && meas_temp <= 42) {
        unoSerial.print(sMeasTemp);
        lcd.setCursor(0,0); lcd.print("Temperature: ");
        lcd.setCursor(0,1); lcd.print(" " + String(meas_temp));
      }

      rawData = Serial.readString();
      commaPos = rawData.indexOf(',');
      userInitial = rawData.substring(0, commaPos);
      if (userInitial == "0") {
        lcd.clear();
        lcd.setCursor(0,0); lcd.print("Error!");
        lcd.setCursor(0,1); lcd.print("Invalid Temperature.");
      }
    } else {
      lcd.setCursor(0,0); lcd.print("Error!");
      lcd.setCursor(0,1); lcd.print("Invalid User.");
    }
    Serial.println("STANDBY");
    delay(1000);
    mfrc522.PICC_HaltA();
    mfrc522.PCD_StopCrypto1();
  }
}

Raspberry Pi (Python)

''' Coded by Aden for Hackster.io Sigfox Competition '''
import mysql.connector, serial, os, time

host = "localhost"; user = "root"; password = "password"; db = "smartTemp"
comPort = 'ttyUSB0'; baudRate = 9600

ser = serial.Serial('/dev/' + comPort, baudRate, timeout=0)
print("Confirming USB Serial Port...")

# 确认串口
connected = False
for x in range(2):
    time.sleep(2)
    ser.write("RAPI")
    if not connected:
        if ser.readline().strip() == "ARDUINO":
            connected = True
            comPort = 'ttyUSB0'
        else:
            comPort = 'ttyUSB1'
            connected = True
    print(comPort)
ser = serial.Serial('/dev/' + comPort, baudRate)
print("COM PORT confirmed: " + comPort)

countFile = open("count.txt", "a++")
cursor = mysql.connector.connect(host=host, user=user, passwd=password).cursor(buffered=True)

try:
    cursor.execute("CREATE DATABASE " + db)
    print("Database created.")
except:
    print(db + " exists.")

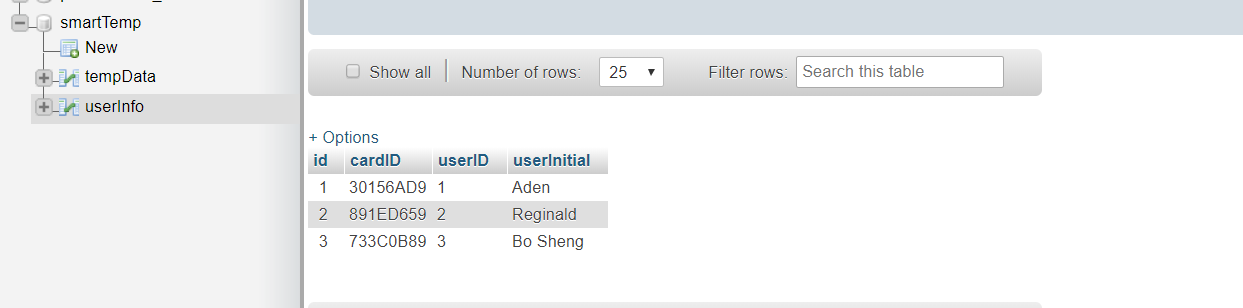

cursor.execute("CREATE TABLE IF NOT EXISTS `userInfo` (id int, cardID VARCHAR(9), userID VARCHAR(4), userInitial VARCHAR(8))")
cursor.execute("CREATE TABLE IF NOT EXISTS `tempData` (id int, userID VARCHAR(4), dateMeas date, timeMeas time, tempMeasure decimal(5,2))")

while True:
    cursor = mysql.connector.connect(host=host, user=user, passwd=password).cursor(buffered=True)
    cursor.execute("USE " + db)

    cardID = str(ser.readline().strip())
    cursor.execute("SELECT * FROM userInfo WHERE cardID = '" + cardID + "'")
    items = cursor.fetchone()

    if items:
        userID = str(items[2])
        userDetails = str(items[3] + ", " + items[2])
        currentDate = time.strftime("%Y-%m-%d")
        currentTime = time.strftime("%H:%M:%S")
        ser.write(userDetails.encode())

        tempSignal = False
        while not tempSignal:
            tempSignal = ser.readline().strip() == "TEMP"
            tempData = float(ser.readline().strip())
            print(tempData)

            if 28 <= tempData <= 42:
                cursor.execute("INSERT INTO `tempData` VALUES (%s, %s, %s, %s, %s)",
                               (count, userID, currentDate, currentTime, tempData))
                conn.commit()
                count += 1
                countFile = open("count.txt", "w")
                countFile.write(str(count))
            else:
                ser.write(b"0, 0")
    else:
        ser.write(b", 0")
        print("Nothing found")

    readySignal = ser.readline().strip() == "STANDBY"
    while readySignal:
        ser.write(b"READY")
        if ser.readline().strip() == "RECEIVED":
            readySignal = False
    cursor.close()

SiPy MicroPython

''' 100% coded by Reginald '''
from machine import UART
from network import Sigfox
import binascii, socket, time, pycom, sys

pycom.heartbeat(False)
sigfox = Sigfox(mode=Sigfox.SIGFOX, rcz=Sigfox.RCZ4)  # 亚洲区
uart1 = UART(1, baudrate=9600)
uart1.init(9600, bits=8, parity=None, stop=1, pins=('P3','P4'), timeout_chars=20)

while True:
    try:
        recv = uart1.readline()
        if recv:
            print(binascii.hexlify(sigfox.id()))
            print(binascii.hexlify(sigfox.pac()))

            sk1 = socket.socket(socket.AF_SIGFOX, socket.SOCK_RAW)
            sk1.setblocking(False)
            sk1.setsockopt(socket.SOL_SIGFOX, socket.SO_RX, False)

            dataList = recv.decode("utf-8")
            split_val = dataList.split(",")
            userID = int(split_val[0])
            temp_H = int(split_val[1])
            temp_L = int(split_val[2])

            bData = [userID, temp_H, temp_L]
            meas_temp = temp_H + temp_L * 0.01
            print("Temp: %.2f" % meas_temp)

            sk1.send(bytes(bData))
            sk1.close()
            time.sleep(5)
    except KeyboardInterrupt:
        sys.exit()

ThingSpeak MATLAB 脚本

%% by Aden for Hackster.io Sigfox Competition
readChannelID = 870479;
webhookTrigger = 'https://maker.ifttt.com/trigger/student_fever/with/key/...';
readAPIKey = 'QGHINBPNJQKULBH2';
writeChannelID = 870482;
writeAPIKey = 'R6NJIM8NT5A42R9N';

wholeNumber = thingSpeakRead(readChannelID, 'ReadKey', readAPIKey, 'Fields', 1);
decimalNumber = thingSpeakRead(readChannelID, 'ReadKey', readAPIKey, 'Fields', 2) / 100;
userID = thingSpeakRead(readChannelID, 'ReadKey', readAPIKey, 'Fields', 3);

analyzedData = wholeNumber + decimalNumber;
thingSpeakWrite(writeChannelID, 'Fields', [1,2], 'Values', {analyzedData, userID}, 'WriteKey', writeAPIKey);

if analyzedData >= 38:
    webwrite(webhookTrigger, 'value1', analyzedData, 'value2', userID)
end

团队分工

• Aden：Raspberry Pi + Arduino + 模块 + ThingSpeak (MATLAB/配置)
• Reginald：Sigfox + ThingSpeak 数据采集 + 原理图
• Bo Sheng：IFTTT 配置
