Fanuc G73 Pattern Repeating Cycle CNC 程序示例代码
Fanuc G73图形重复循环CNC编程实例。
Fanuc G73 Pattern Repeating Cycle 已经在这里描述了
CNC Fanuc G73 Pattern Repeating Cycle
You might like other Fanuc G73 pattern repeating cycle examples
CNC Fanuc G73 Pattern Repeating Cycle CNC程序范例
Fanuc G73 Pattern Repeating Canned Cycle Basic CNC Sample Program
Fanuc G73 花样重复循环编程实例
此数控程序示例还展示了数控机械师如何使用“W”而不是“Z”进行 z 轴运动。

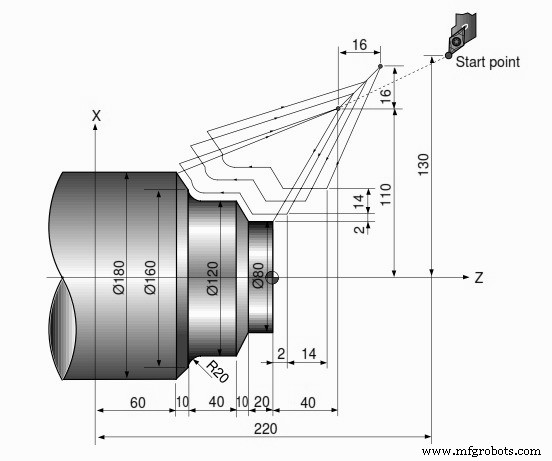

Fanuc G73花样重复循环程序示例
N010 G00 X260.0 Z80.0 N011 G00 X220.0 Z40.0 N012 G73 U14.0 W14.0 R3 N013 G73 P014 Q020 U4.0 W2.0 F0.3 S0180 N014 G00 G42 X80.0 Z2.0 N015 G01 W-20.0 F0.15 S0600 N016 X120.0 W-10.0 N017 W-20.0 S0400 N018 G02 X160.0 W-20.0 R20.0 N019 G01 X180.0 W-10.0 S0280 N020 G40 N021 G70 P014 Q020 N022 G00 X260.0 Z80.0 N023 M30
