Arduino 声纳实时测距与 Processing 可视化

组件与物料

所需工具和机器

• 热熔胶枪
• 电烙铁套装 (SolderPro 150)

应用与在线服务

• Arduino IDE
• Processing IDE (The Processing Foundation)

项目介绍

作者原本打算制作避障小车，但觉得太常见，便利用舵机和 HC-SR04 超声波传感器制作声纳雷达。由于没有 TFT 屏幕，选择用 Processing IDE 在电脑上高分辨率显示声纳数据。先用 p5.js 网页编辑器练习，再转用 Processing 正式开发。

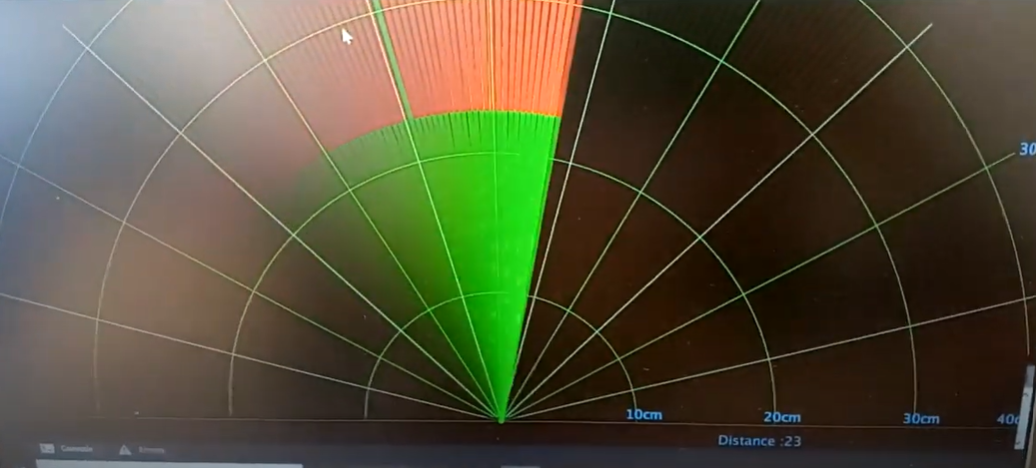

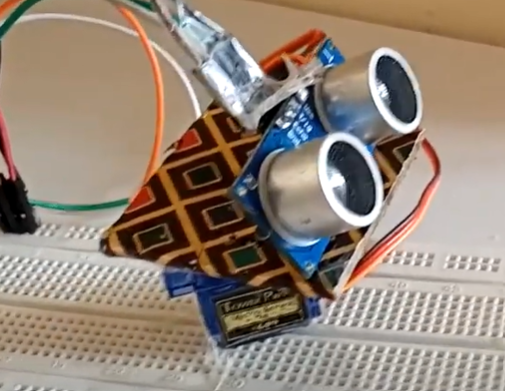

将超声波传感器用热熔胶固定在舵机上，随舵机旋转覆盖 180° 范围。Processing 端实时绘制雷达扫描图，显示检测到的物体距离和角度。

代码

Arduino 端代码 (C/C++)

#include <Servo.h>
const int trigPin = 12;
const int echoPin = 11;
long duration;
int distance;
Servo s1;

void setup() {
  Serial.begin(9600);
  pinMode(trigPin, OUTPUT);
  pinMode(echoPin, INPUT);
  s1.attach(9);
}

void loop() {
  for(int i = 0; i < 180; i++) {
    s1.write(i);
    delay(30);
    distance = calDist();
    Serial.print(i);
    Serial.print(",");
    Serial.print(distance);
    Serial.print(".");
  }
  for(int i = 180; i > 0; i--) {
    s1.write(i);
    delay(30);
    distance = calDist();
    Serial.print(i);
    Serial.print(",");
    Serial.print(distance);
    Serial.print(".");
  }
}

int calDist() {
  digitalWrite(trigPin, LOW);
  delayMicroseconds(2);
  digitalWrite(trigPin, HIGH);
  delayMicroseconds(10);
  digitalWrite(trigPin, LOW);
  duration = pulseIn(echoPin, HIGH);
  distance = duration * 0.034 / 2;
  return distance;
}

Processing 端代码 (Java)

import processing.serial.*;
Serial myPort;
String ang = "";
String distance = "";
String data = "";
int angle, dist;

void setup() {
  size(2000, 800);
  myPort = new Serial(this, "COM3", 9600);
  myPort.bufferUntil('.');
  background(0);
}

void draw() {
  fill(0, 5);
  noStroke();
  rect(0, 0, width, height * 0.93);
  noStroke();
  fill(0, 255);
  rect(0, height * 0.93, width, height);
  drawRadar();
  drawLine();
  drawObject();
  drawText();
}

void serialEvent(Serial myPort) {
  data = myPort.readStringUntil('.');
  data = data.substring(0, data.length() - 1);
  int index1 = data.indexOf(",");
  ang = data.substring(0, index1);
  distance = data.substring(index1 + 1, data.length());
  angle = int(ang);
  dist = int(distance);
  System.out.println(angle);
}

void drawRadar() {
  pushMatrix();
  noFill();
  strokeWeight(0.5);
  stroke(10, 255, 10);
  translate(width/2, height - height * 0.06);
  line(-width/2, 0, width/2, 0);
  arc(0, 0, width * 0.5, width * 0.5, PI, TWO_PI);
  arc(0, 0, width * 0.25, width * 0.25, PI, TWO_PI);
  arc(0, 0, width * 0.75, width * 0.75, PI, TWO_PI);
  arc(0, 0, width * 0.95, width * 0.95, PI, TWO_PI);
  // 角度刻度线
  for (int a = 30; a <= 150; a += 30) {
    line(0, 0, (-width/2) * cos(radians(a)), (-width/2) * sin(radians(a)));
  }
  stroke(175, 255, 175);
  for (int a = 15; a <= 165; a += 30) {
    line(0, 0, (-width/2) * cos(radians(a)), (-width/2) * sin(radians(a)));
  }
  popMatrix();
}

void drawLine() {
  pushMatrix();
  strokeWeight(9);
  stroke(0, 255, 0);
  translate(width/2, height - height * 0.06);
  line(0, 0, (width/2) * cos(radians(angle)), (-width/2) * sin(radians(angle)));
  popMatrix();
}

void drawObject() {
  pushMatrix();
  strokeWeight(9);
  stroke(255, 0, 0);
  translate(width/2, height - height * 0.06);
  float pixleDist = (dist / 40.0) * (width / 2.0);
  float pd = (width/2) - pixleDist;
  float x = -pixleDist * cos(radians(angle));
  float y = -pixleDist * sin(radians(angle));
  if (dist <= 40) {
    line(-x, y, -x + (pd * cos(radians(angle))), y - (pd * sin(radians(angle))));
  }
  popMatrix();
}

void drawText() {
  pushMatrix();
  fill(100, 200, 255);
  textSize(25);
  text("10cm", (width/2) + (width * 0.115), height * 0.93);
  text("20cm", (width/2) + (width * 0.24), height * 0.93);
  text("30cm", (width/2) + (width * 0.365), height * 0.93);
  text("40cm", (width/2) + (width * 0.45), height * 0.93);
  if (dist <= 40) {
    text("Distance :" + dist, width * 0.7, height * 0.99);
  }
  translate(width/2, height - height * 0.06);
  textSize(25);
  text(" 30", (width/2) * cos(radians(30)), (-width/2) * sin(radians(30)));
  text(" 60", (width/2) * cos(radians(60)), (-width/2) * sin(radians(60)));
  text("90", (width/2) * cos(radians(91)), (-width/2) * sin(radians(90)));
  text("120", (width/2) * cos(radians(123)), (-width/2) * sin(radians(118)));
  text("150", (width/2) * cos(radians(160)), (-width/2) * sin(radians(150)));
  popMatrix();
}

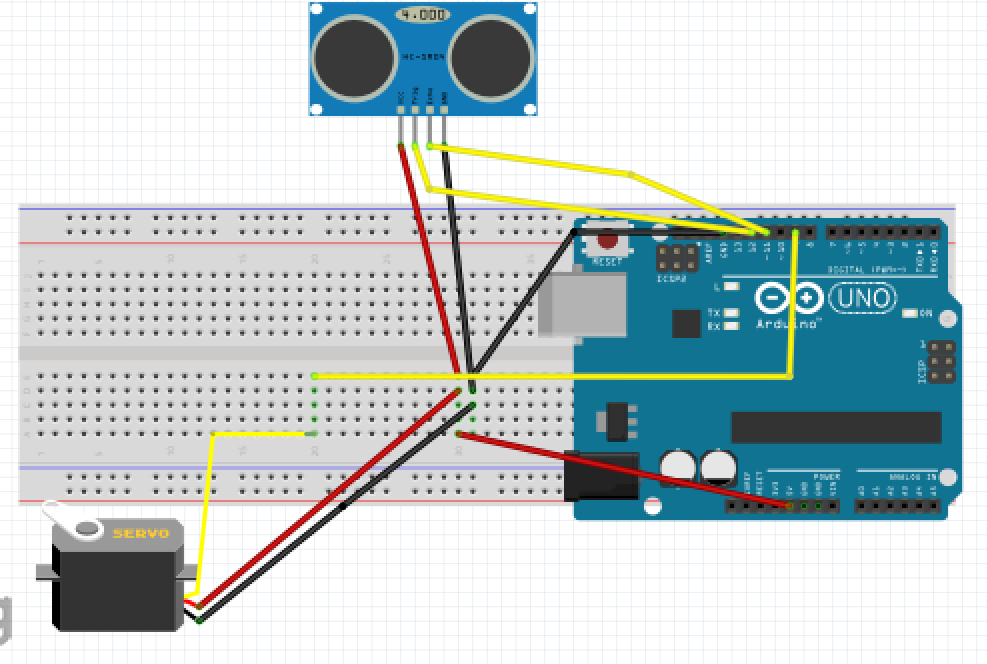

原理图
